Legrand817TCAL

Legrand Floor Box (Wiremold Nonmetallic Fire Classified Floor Boxes). Model 880MPFC. Maintains two-hour fire rating; Rectangular configuration; Minimum concrete depth 3 1/2"; Maximum concrete depth 6". material: Nonmetallic

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF817TCAL.pdfData sheet

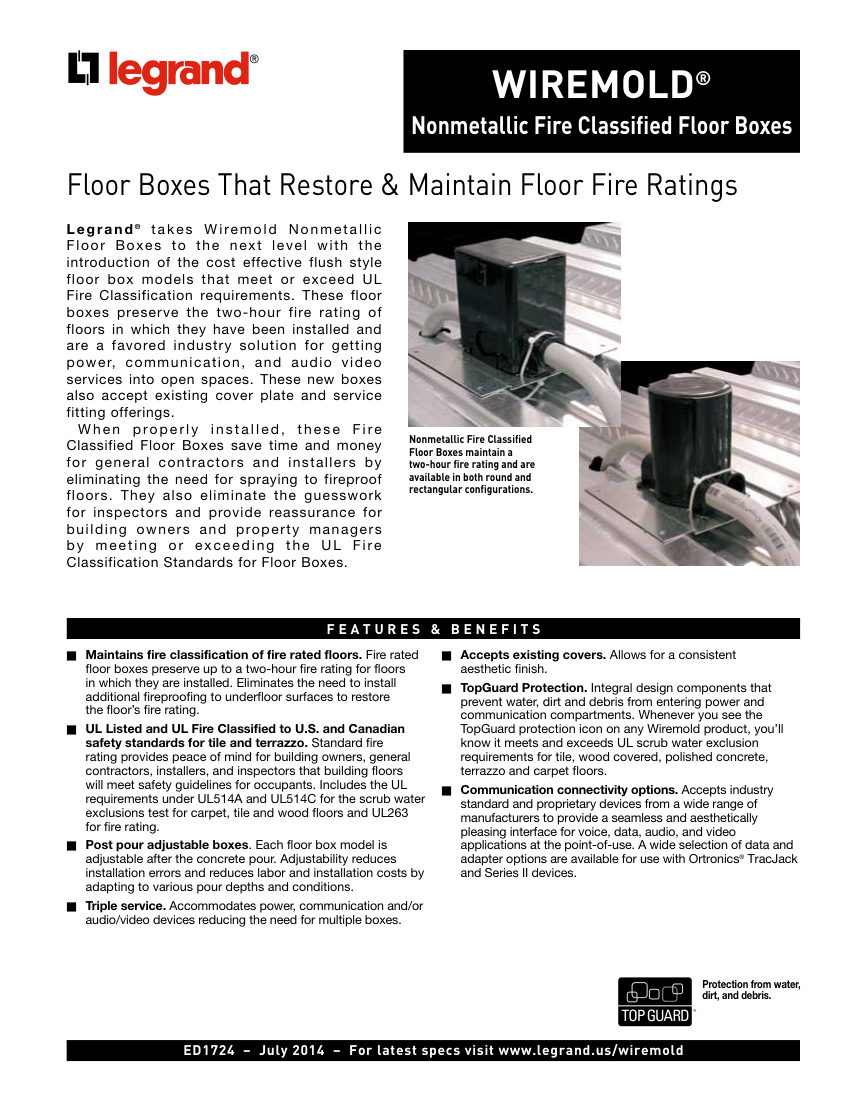

Legrand 817TCAL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
817TCAL
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number817TCAL
DescriptionLegrand Floor Box (Wiremold Nonmetallic Fire Classified Floor Boxes). Model 880MPFC. Maintains two-hour fire rating; Rectangular configuration; Minimum concrete depth 3 1/2"; Maximum concrete depth 6". material: Nonmetallic
Connection size1" Trade Size
End connectionConduit
MountingPost pour adjustable
Dimensions4 1/8" W x 5 1/2" L x 6" H
ComplianceUL Listed, UL Fire Classified, UL514A, UL514C, UL263.

Also cataloged as: 817TCAL-BK, 817TCAL-GY, 817TCAL-BS, 817TCAL-NK, 817TCAL-BZ, 817TCAL--BK, 817TCAL--GY, 817TCAL--BS, 817TCAL--NK, 817TCAL--BZ
