LegrandCS WhisperTru Uni ADADWR703TU

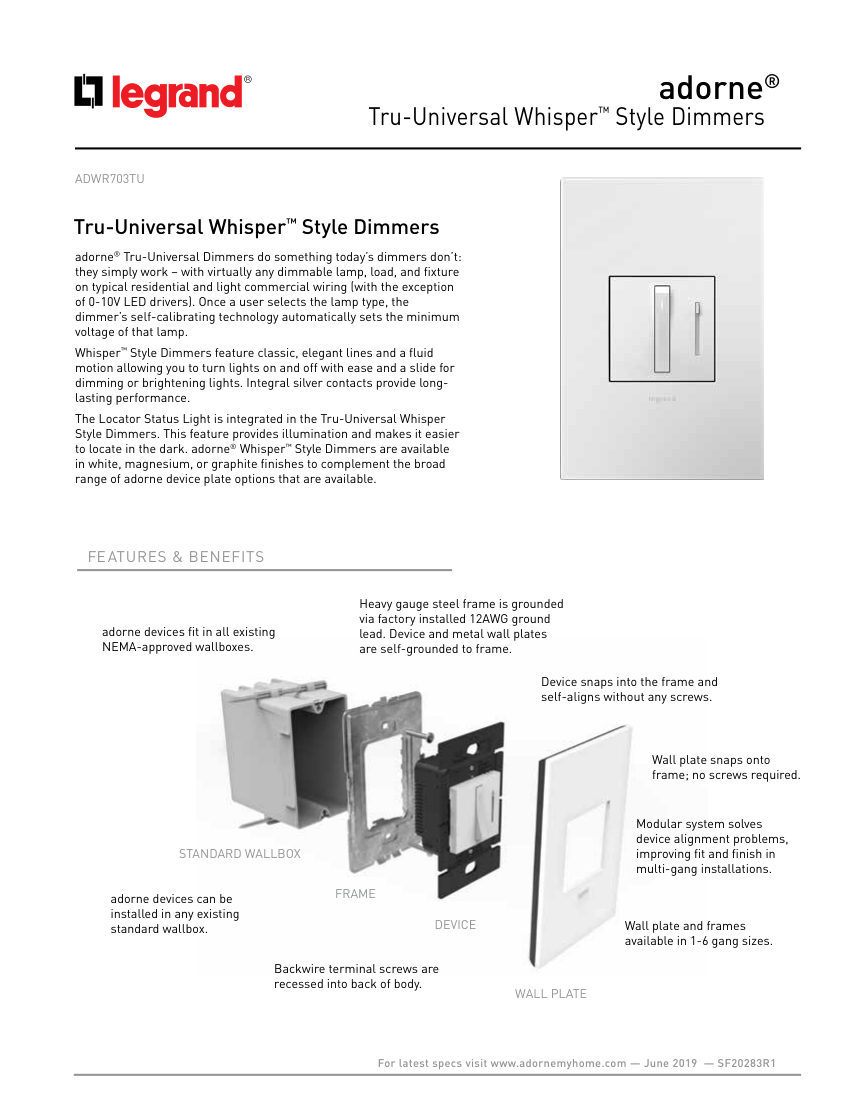

Name: Legrand CS WhisperTru Uni AD (ADWR703TU)
Brand: Legrand
SKU: ADWR703TU

Legrand dimmer switch (adorne Tru-Universal Whisper Style Dimmers). Model ADWR703TU. Single-Pole/3-Way installation

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	ADWR703TU
Description	Legrand dimmer switch (adorne Tru-Universal Whisper Style Dimmers). Model ADWR703TU. Single-Pole/3-Way installation
Max Load	700W Incandescent/Halogen, 450W LED/CFL; Self-calibrating technology for lamp type; Integrated Locator Status Light. material: Polycarbonate paddle, Brass terminals, Steel plated
Finish	White, Magnesium, Graphite
Mounting	Standard wallbox, screwless snap-in frame
Dimensions	1.77" x 1.77" x 4.19" [45mm x 45mm x 106mm]
Compliance	cULus Listed, File Number E95219, Standard UL1472
Voltage	120 VAC.

Also cataloged as: ADWR703TUM4, ADWR703TUW4, ADWR703TUG4, ADWR703TU-M, ADWR703TU-W, ADWR703TU-G, ADWR703TU-4
