DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

LegrandARTRUSB153

Legrand Dual USB Plus-Size Outlet Combo (adorne). Model ARTRUSB153. 3.1A total USB charging capability at 5V DC; 15A, 125V AC receptacle rating; Tamper-resistant design; Heavy gauge steel frame grounded via 12AWG lead. material: Polycarbonate cover, Brass terminals, Steel frame

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFARTRUSB153.pdfData sheet

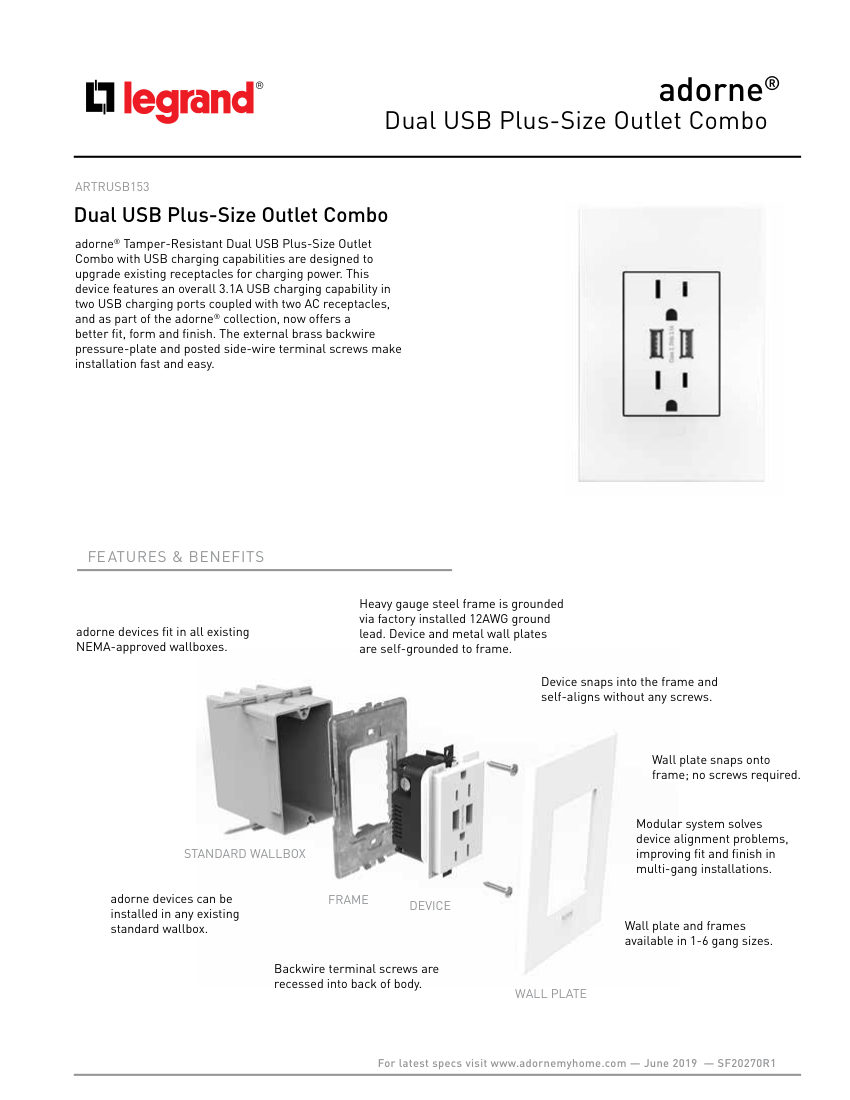

Legrand ARTRUSB153 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
ARTRUSB153
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberARTRUSB153
DescriptionLegrand Dual USB Plus-Size Outlet Combo (adorne). Model ARTRUSB153. 3.1A total USB charging capability at 5V DC; 15A, 125V AC receptacle rating; Tamper-resistant design; Heavy gauge steel frame grounded via 12AWG lead. material: Polycarbonate cover, Brass terminals, Steel frame
Connection size#14AWG-#12AWG
End connectionBackwire with internal pressure plates, #8-32 screw
FinishMagnesium, White, Graphite
MountingStandard wallbox, screwless snap-on frame and wall plate
Dimensions2.65" x 1.77".

Also cataloged as: ARTRUSB153M4, ARTRUSB153W4, ARTRUSB153G4, ARTRUSB153-M4, ARTRUSB153-W4, ARTRUSB153-G4
