LegrandASWV1532

Legrand Motion Sensor Light Switch (adorne Wave Style Switches). Model ASWV1532. 15A, 120VAC, 1/2Hp rating; Adjustable sensor distance 1" to 6"; Includes Locator Status Light; Single-Pole/3-Way configuration. material: Polycarbonate face, Brass terminals, Silver contacts

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFASWV1532.pdfData sheet

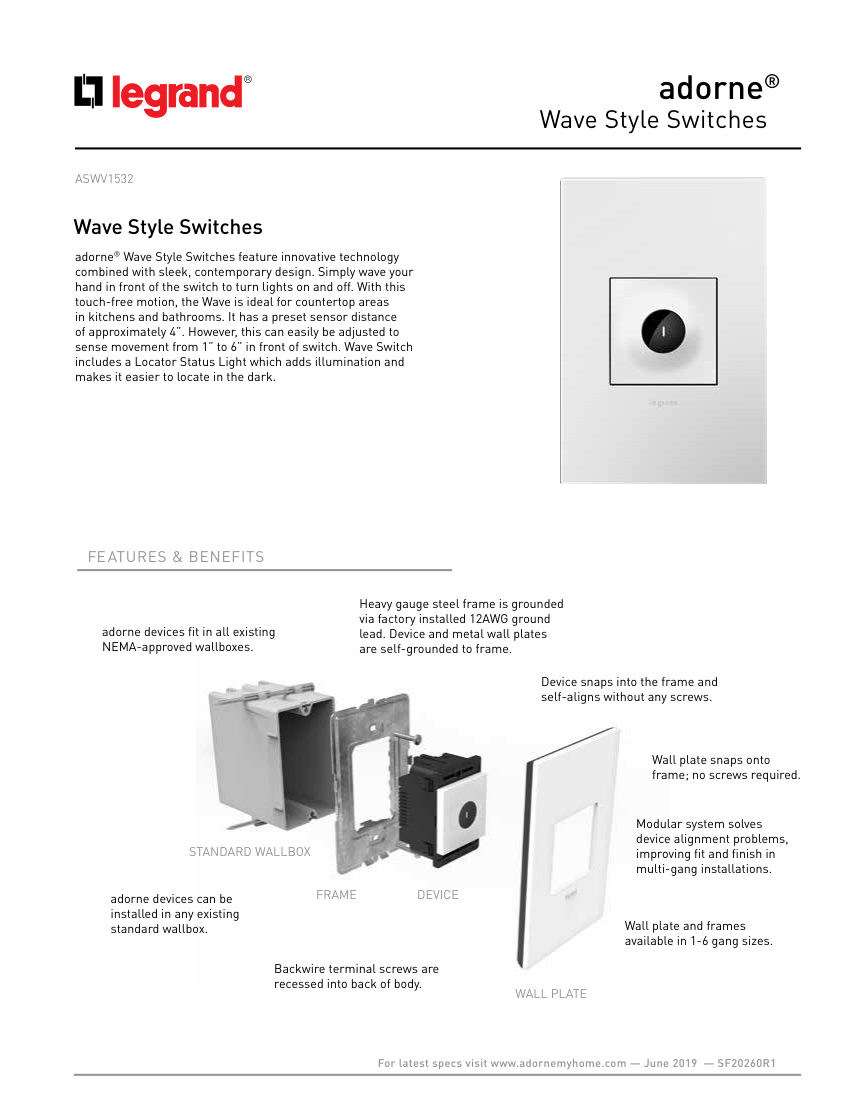

Legrand ASWV1532 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
ASWV1532
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberASWV1532
DescriptionLegrand Motion Sensor Light Switch (adorne Wave Style Switches). Model ASWV1532. 15A, 120VAC, 1/2Hp rating; Adjustable sensor distance 1" to 6"; Includes Locator Status Light; Single-Pole/3-Way configuration. material: Polycarbonate face, Brass terminals, Silver contacts
Connection size#14AWG-#12AWG
End connectionBackwire terminal screws
FinishMagnesium, White, Graphite
MountingStandard wallbox, screwless snap-in frame
Dimensions1.77" x 1.77" x 2.48".

Also cataloged as: ASWV1532M2, ASWV1532W2, ASWV1532G2, ASWV1532-M2, ASWV1532-W2, ASWV1532-G2
