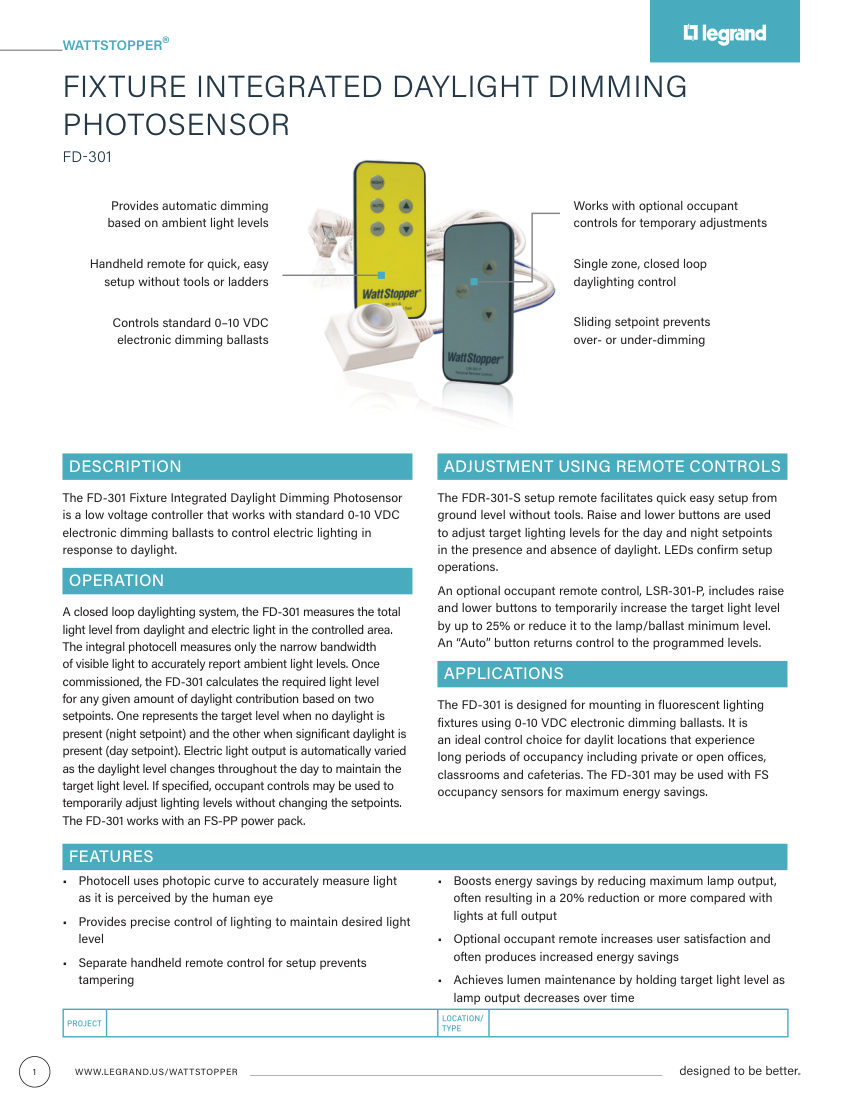

LegrandBCS-SS-CS-31474r2_FD-301_cutsheet-011222
Legrand Fixture Integrated Daylight Dimming Photosensor (WattStopper). Model FD-301. Controls standard 0-10 VDC electronic dimming ballasts; Closed loop daylighting system with sliding setpoint algorithm; Includes 6' lead with RJ45 connector and 1' bare leads; Operating temperature range 0-40°C (32-104°F). material: ABS
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Legrand
- Catalog no.
- BCS-SS-CS-31474r2_FD-301_cutsheet-011222
- Product type
- Electrical
- MasterFormat
- 26
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | BCS-SS-CS-31474r2_FD-301_cutsheet-011222 |
|---|---|
| Description | Legrand Fixture Integrated Daylight Dimming Photosensor (WattStopper). Model FD-301. Controls standard 0-10 VDC electronic dimming ballasts; Closed loop daylighting system with sliding setpoint algorithm; Includes 6' lead with RJ45 connector and 1' bare leads; Operating temperature range 0-40°C (32-104°F). material: ABS |
| End connection | RJ45 connector, 1' bare leads |
| Finish | White |
| Mounting | Fixture integrated |
| Dimensions | 1.57" x .98" x .84" (40mm x 25mm x 21.4 mm) |
| Voltage | 24 VDC. |
