DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

LegrandBCS-WS-CS-27363r2-UW-200-110821

Legrand Ultrasonic Dual Relay Wall Switch Occupancy Sensor (WattStopper). Model UW-200. Two relays for controlling two independent lighting loads; Ultrasonic detection with 40kHz frequency

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBCS-WS-CS-27363r2-UW-200-110821.pdfData sheet

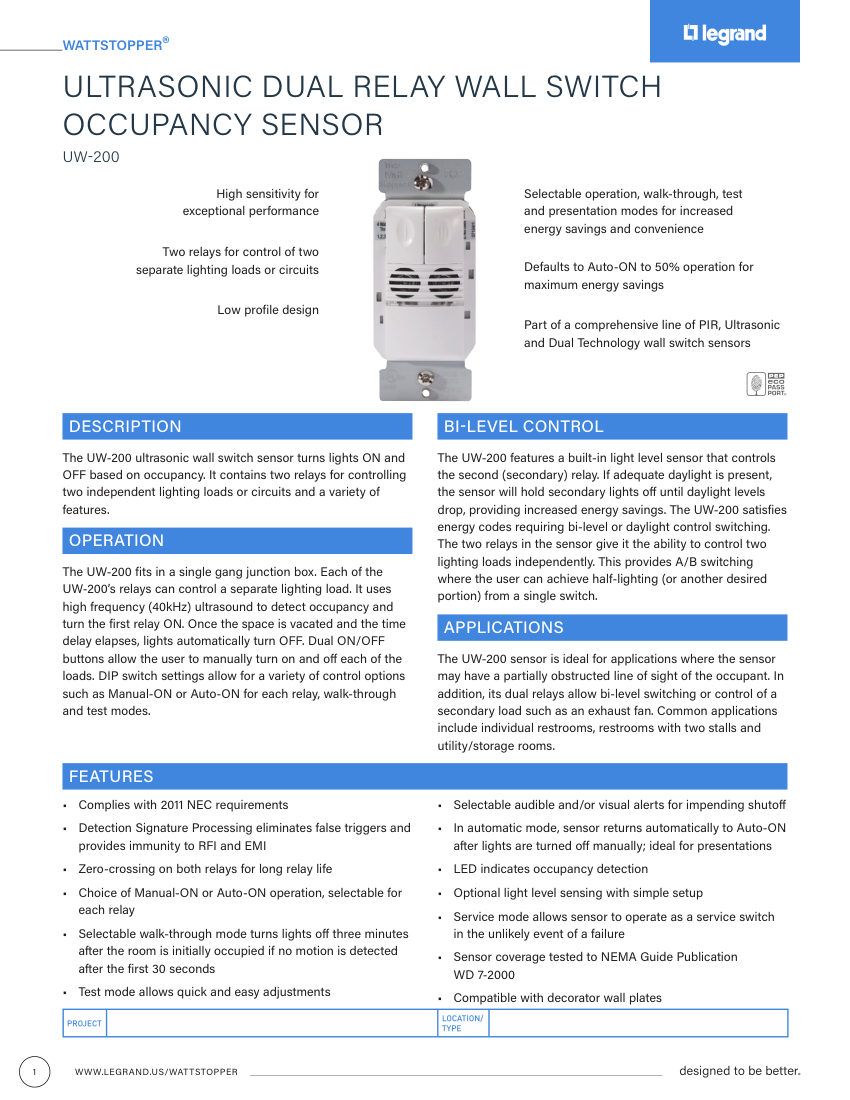

Legrand BCS-WS-CS-27363r2-UW-200-110821 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
BCS-WS-CS-27363r2-UW-200-110821
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberBCS-WS-CS-27363r2-UW-200-110821
DescriptionLegrand Ultrasonic Dual Relay Wall Switch Occupancy Sensor (WattStopper). Model UW-200. Two relays for controlling two independent lighting loads; Ultrasonic detection with 40kHz frequency
Coverage20' x 20' major motion, 15' x 15' minor motion
Selectable time delays5, 10, 15, 20, 25, or 30 minutes. mounting: Single gang junction box
Dimensions2.73" x 1.76" x 1.83" (69.3mm x 44.7mm x 46.5mm)
ComplianceUL and cUL listed, 2011 NEC, NEMA WD 7-2000
Voltage120/277 VAC; 50/60 Hz.
