DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED
LegrandBCS-WS-CS-CI-355
Legrand Passive Infrared Line Voltage Ceiling Sensor (Wattstopper). Model CI-355. 360° coverage with multi-level Fresnel lens
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Legrand
- Catalog no.
- BCS-WS-CS-CI-355
- Product type
- Electrical
- MasterFormat
- 26

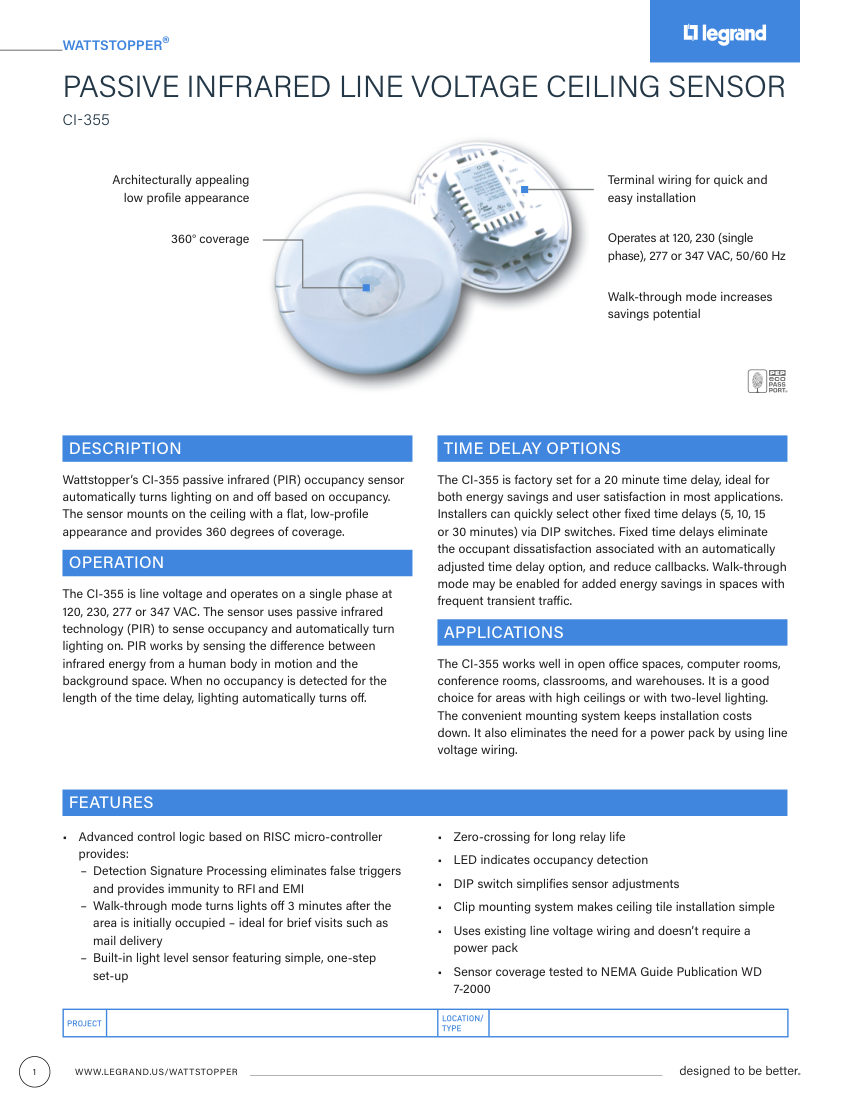

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | BCS-WS-CS-CI-355 |
|---|---|
| Description | Legrand Passive Infrared Line Voltage Ceiling Sensor (Wattstopper). Model CI-355. 360° coverage with multi-level Fresnel lens |
| Time delays | 5, 10, 15, 20, or 30 minutes; Built-in light level sensor (10-300 footcandles); Walk-through mode available. mounting: Ceiling, 4 square junction box with double gang mudring or 4 inch octagonal j-box |
| Dimensions | 4.5" diameter x 1.45" deep (114.3mm x 25.9mm) |
| Compliance | UL and cUL listed |
| Voltage | 120/230 (single phase)/277/347 VAC, 50/60 Hz. |
- Official cut sheet, indexed
