DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

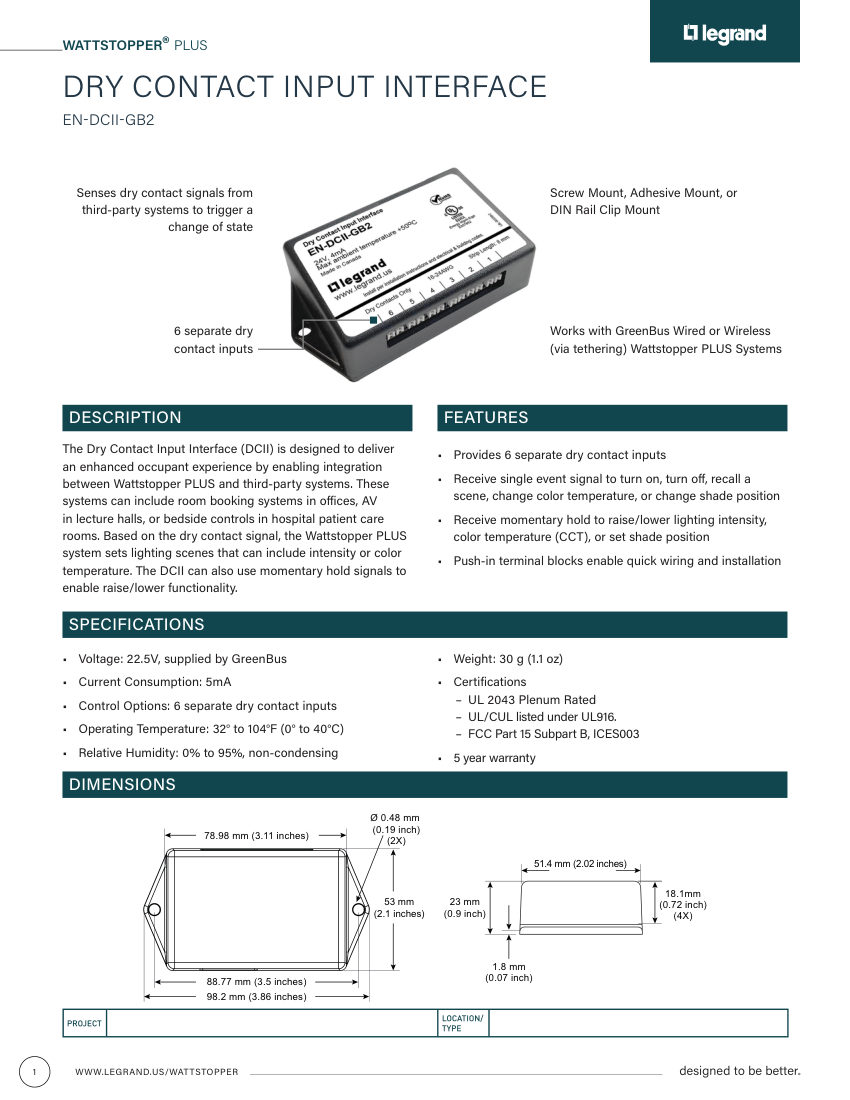

LegrandBCS WS CS DCIIcutsheet 080474 r3BCS-WS-CS-DCIIcutsheet-080474-r3

Name: Legrand BCS WS CS DCIIcutsheet 080474 r3 (BCS-WS-CS-DCIIcutsheet-080474-r3)
Brand: Legrand
SKU: BCS-WS-CS-DCIIcutsheet-080474-r3

Legrand Dry Contact Input Interface (Wattstopper PLUS). Model EN-DCII-GB2. 6 separate dry contact inputs

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	BCS-WS-CS-DCIIcutsheet-080474-r3
Description	Legrand Dry Contact Input Interface (Wattstopper PLUS). Model EN-DCII-GB2. 6 separate dry contact inputs
Current Consumption	5mA
Operating Temperature	32° to 104°F (0° to 40°C)
Weight	30 g (1.1 oz). endConnection: Push-in terminal blocks
Mounting	Screw Mount, Adhesive Mount, or DIN Rail Clip Mount
Dimensions	98.2 mm x 53 mm x 18.1 mm
Compliance	UL 2043 Plenum Rated, UL/CUL listed under UL916, FCC Part 15 Subpart B, ICES003
Voltage	22.5V.
