DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

LegrandBCS WS CS DCLV2BCS-WS-CS-DCLV2

Legrand 0-10V Decorator Dimmer (WattStopper). Model DCLV-2. Controls low voltage 0-10V lighting loads including LED; Sinks up to 50mA to control up to 25 drivers/ballasts; Includes sensor input for occupancy and Manual-On mode; Compatible with ELCU-200 Emergency Lighting Control Unit. mounting: Wall plate compatible

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBCS-WS-CS-DCLV2.pdfData sheet

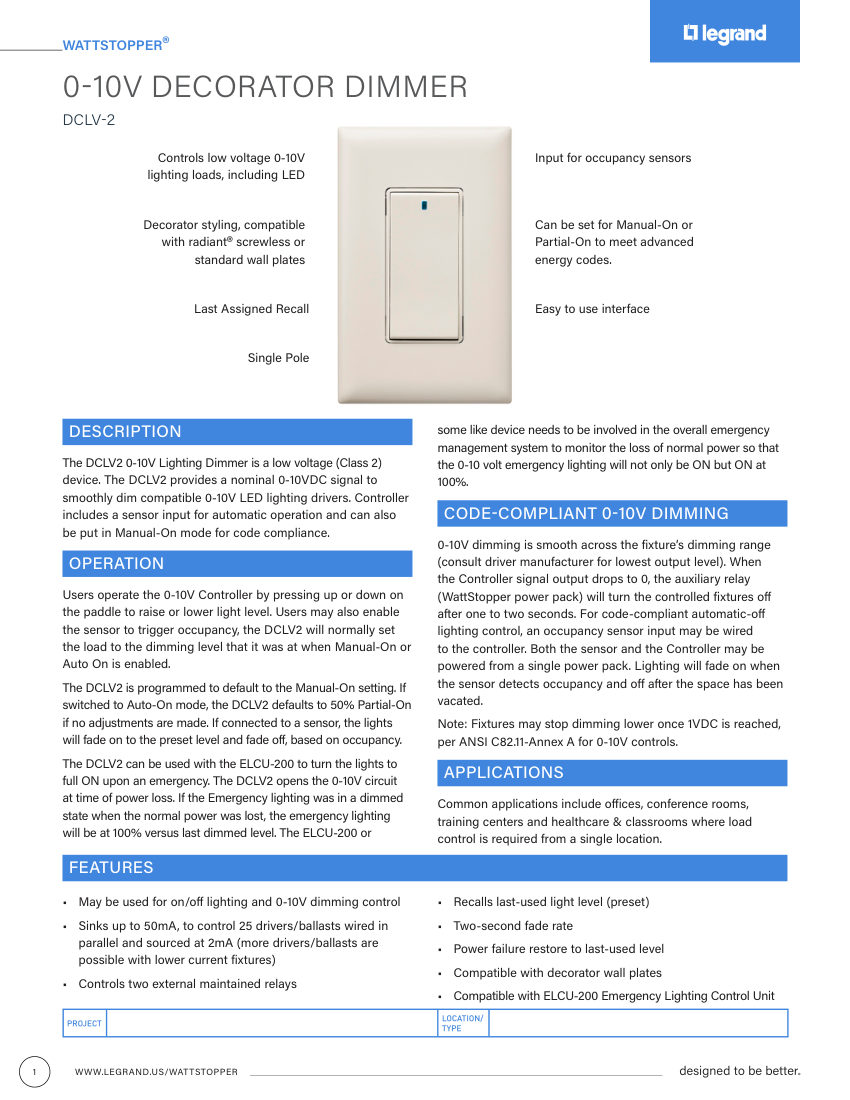

Legrand BCS-WS-CS-DCLV2 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
BCS-WS-CS-DCLV2
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberBCS-WS-CS-DCLV2
DescriptionLegrand 0-10V Decorator Dimmer (WattStopper). Model DCLV-2. Controls low voltage 0-10V lighting loads including LED; Sinks up to 50mA to control up to 25 drivers/ballasts; Includes sensor input for occupancy and Manual-On mode; Compatible with ELCU-200 Emergency Lighting Control Unit. mounting: Wall plate compatible
Dimensions2.64" x 1.75" x 1.98" (67.1mm x 44.5mm x 50.3mm)
ComplianceUL and cUL listed
Voltage24VDC input; 0-10VDC control output.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
