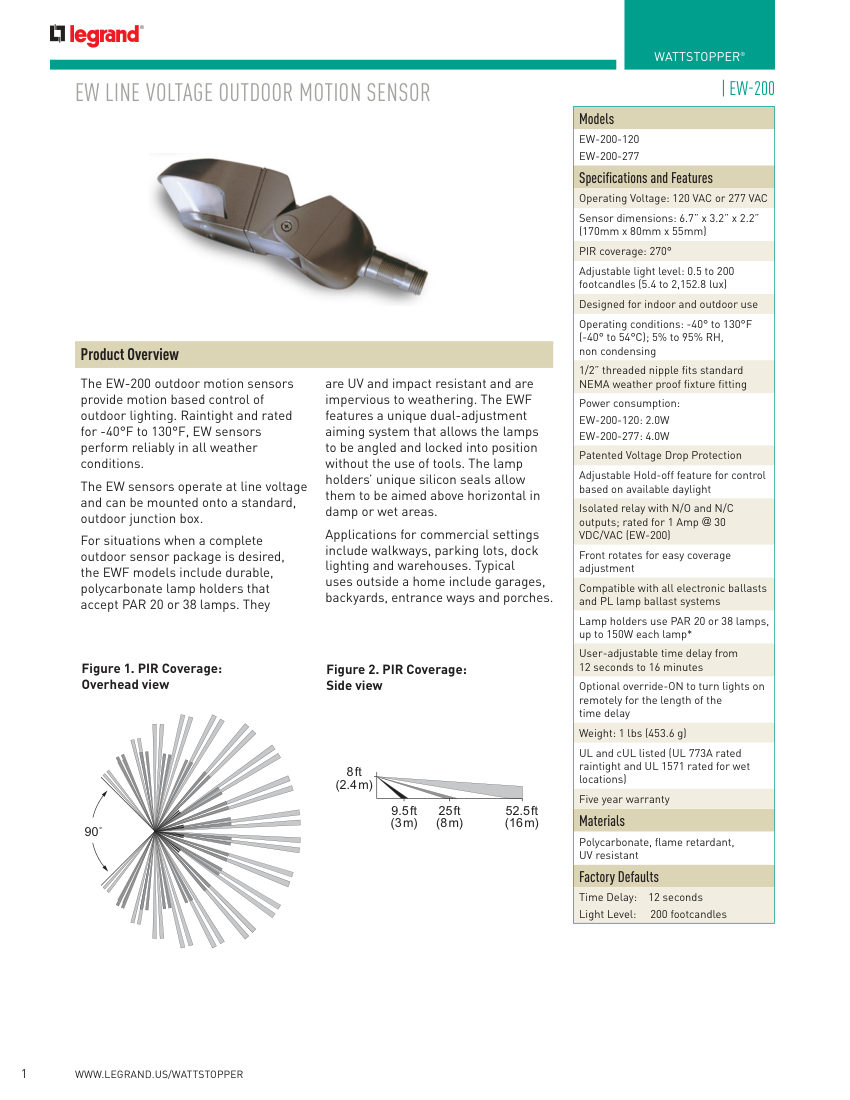

DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

LegrandBCS-WS-CS-EW-200-28192-R01-0818

Name: Legrand BCS-WS-CS-EW-200-28192-R01-0818
Brand: Legrand
SKU: BCS-WS-CS-EW-200-28192-R01-0818

Legrand Outdoor Motion Sensor (WattStopper). Model EW-200. PIR coverage: 270°

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	BCS-WS-CS-EW-200-28192-R01-0818
Description	Legrand Outdoor Motion Sensor (WattStopper). Model EW-200. PIR coverage: 270°
Operating conditions	-40° to 130°F (-40° to 54°C)
Adjustable light level	0.5 to 200 footcandles
Relay rating	1 Amp @ 30 VDC/VAC. material: Polycarbonate, flame retardant, UV resistant
Connection size	1/2" threaded nipple
End connection	Standard NEMA weather proof fixture fitting
Mounting	Outdoor junction box
Dimensions	6.7" x 3.2" x 2.2" (170mm x 80mm x 55mm)
Compliance	UL and cUL listed (UL 773A, UL 1571).
