LegrandBCS-WS-CS-FS-205
Legrand Low Voltage PIR Fixture Integrated Occupancy Sensor (WattStopper). Model FS-205. 360° coverage pattern up to 200 sq ft at 8 ft mounting height; Adjustable time delay from 30 seconds to 30 minutes; Hold-off daylighting feature adjustable from 10-120 fc; Low-voltage 6-ft whip with RJ45 connector. connectionSize: RJ45
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Legrand
- Catalog no.
- BCS-WS-CS-FS-205
- Product type
- Electrical
- MasterFormat
- 26

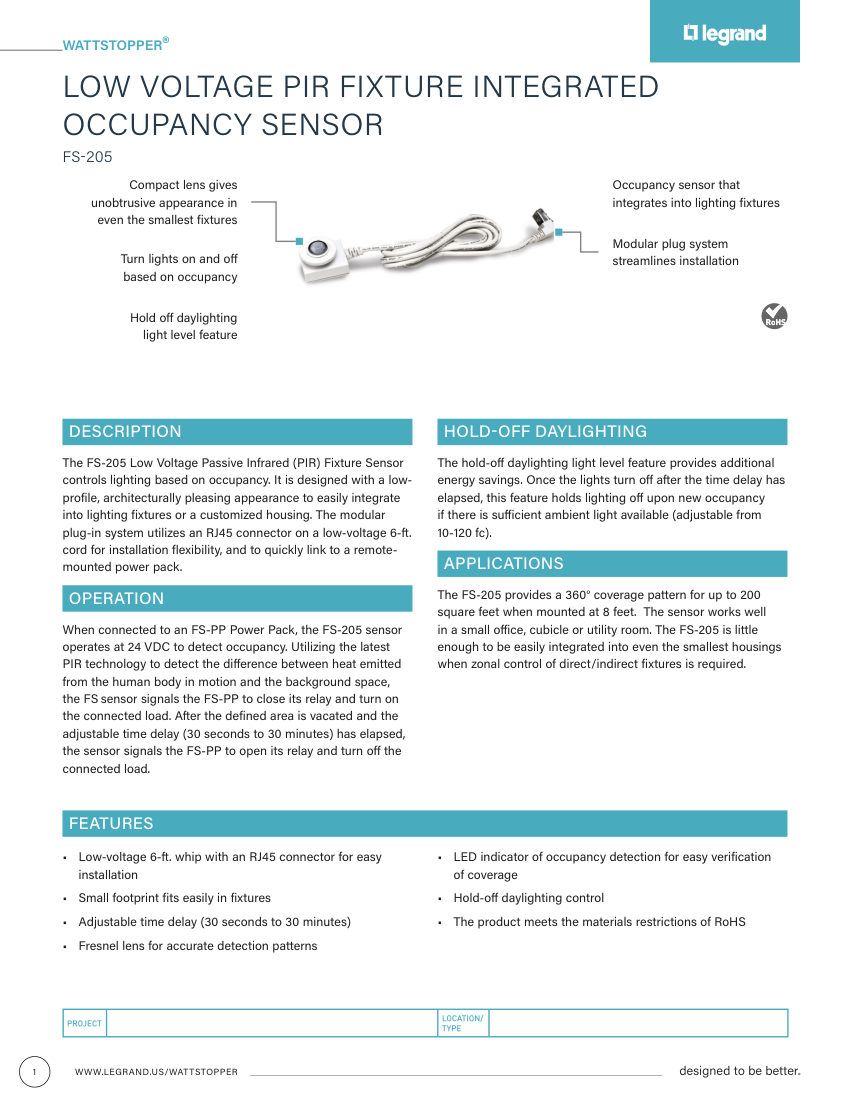

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | BCS-WS-CS-FS-205 |
|---|---|
| Description | Legrand Low Voltage PIR Fixture Integrated Occupancy Sensor (WattStopper). Model FS-205. 360° coverage pattern up to 200 sq ft at 8 ft mounting height; Adjustable time delay from 30 seconds to 30 minutes; Hold-off daylighting feature adjustable from 10-120 fc; Low-voltage 6-ft whip with RJ45 connector. connectionSize: RJ45 |
| End connection | RJ45 |
| Mounting | Fixture Integrated |
| Dimensions | Sensor body: 1.12" x 1.38" x .5" (28.5mm x 35mm x 12.7mm) |
| Throat | 0.75" (19mm) diameter |
| Compliance | UL and cUL listed, RoHS |
| Voltage | 24 VDC. |
