DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

LegrandBCS WS CS IDP 3050BCS-WS-CS-IDP-3050

Legrand Isolé Power Strip with Personal Sensor (WattStopper). Model IDP-3050. Eight outlets: six controlled by occupancy, two uncontrolled; Surge suppression with 740 joule rating and 48,000 amp maximum surge amperage; Personal sensor uses PIR technology with 120° coverage up to 300 sq ft; User-adjustable time delay from 30 seconds to 30 minutes. finish: Dark gray

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBCS-WS-CS-IDP-3050.pdfData sheet

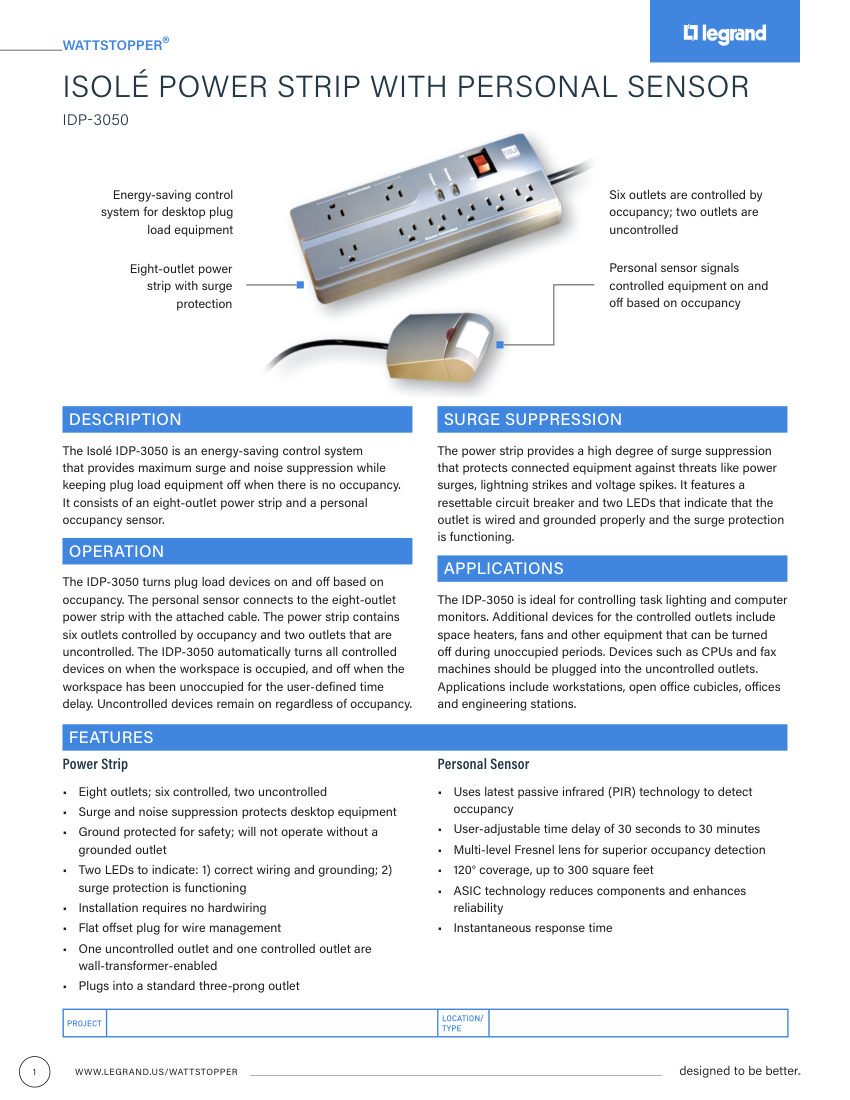

Legrand BCS-WS-CS-IDP-3050 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
BCS-WS-CS-IDP-3050
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberBCS-WS-CS-IDP-3050
DescriptionLegrand Isolé Power Strip with Personal Sensor (WattStopper). Model IDP-3050. Eight outlets: six controlled by occupancy, two uncontrolled; Surge suppression with 740 joule rating and 48,000 amp maximum surge amperage; Personal sensor uses PIR technology with 120° coverage up to 300 sq ft; User-adjustable time delay from 30 seconds to 30 minutes. finish: Dark gray
MountingScrews or double-sided tape
ComplianceUL 1449 3rd Edition, UL and cUL listed
Voltage120VAC, 12A, 50/60 Hz.
