Legrand Sensor Interface Module (Wattstopper PLUS). Model EN-SIM-AI/SPS-GB2-BK. Class 2 Low Voltage Device; Automatically detects sensor type (occupancy or photosensor)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBCS-WS-CS-SIMCutsheet-080429-r5.pdfData sheet

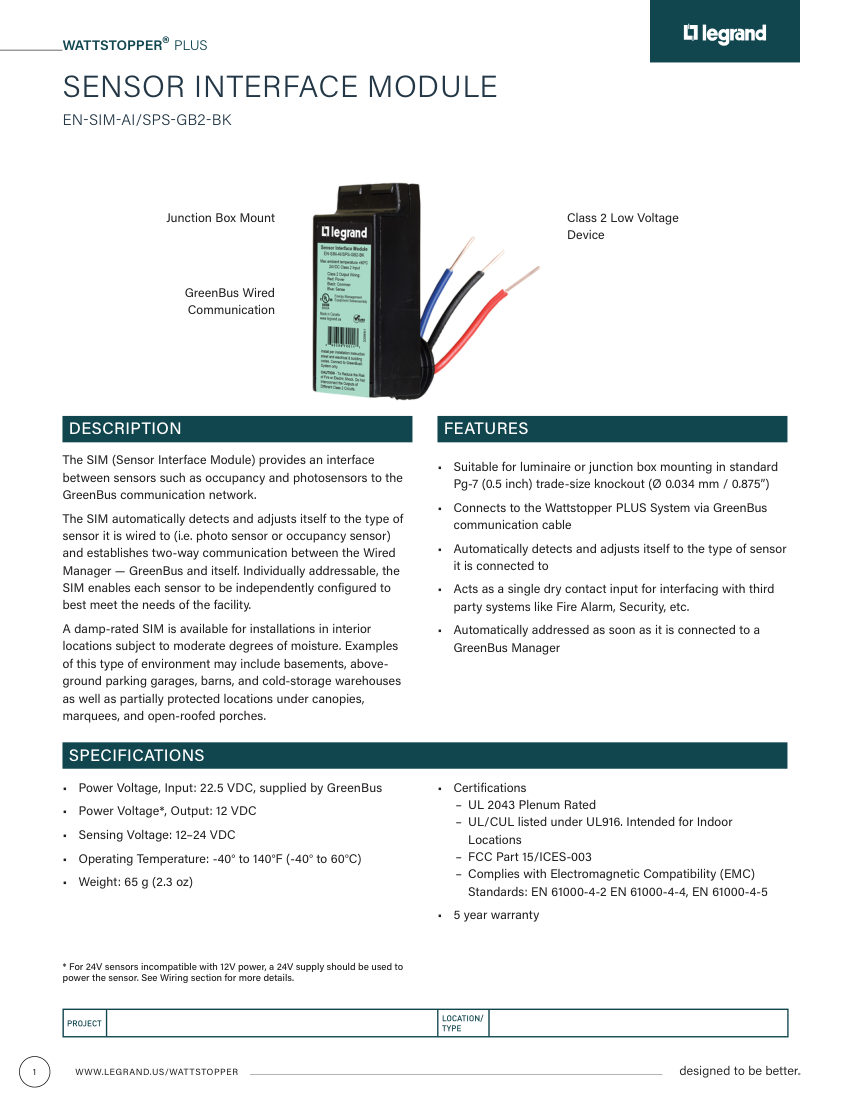

Legrand BCS-WS-CS-SIMCutsheet-080429-r5 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
BCS-WS-CS-SIMCutsheet-080429-r5
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberBCS-WS-CS-SIMCutsheet-080429-r5
DescriptionLegrand Sensor Interface Module (Wattstopper PLUS). Model EN-SIM-AI/SPS-GB2-BK. Class 2 Low Voltage Device; Automatically detects sensor type (occupancy or photosensor)
Operating Temperature-40° to 140°F (-40° to 60°C)
Weight65 g (2.3 oz). connectionSize: Pg-7 (0.5 inch) trade-size knockout
End connectionGreenBus communication cable
FinishBlack
MountingJunction Box or Luminaire
Dimensions60.7 mm x 30.5 mm x 30 mm
ComplianceUL 2043, UL916, FCC Part 15/ICES-003, EN 61000-4-2/4/5.
