Legrand DALI Lighting Controller (Wattstopper PLUS). Model EN-M-DALI2-X. 4 DALI channels supporting up to 64 luminaires and 64 input devices; Controls up to 256 DALI drivers and 256 DALI input devices per manager

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBCS-WS-CS-WiredManagerDALIcutsheet-080242-r8.pdfData sheet

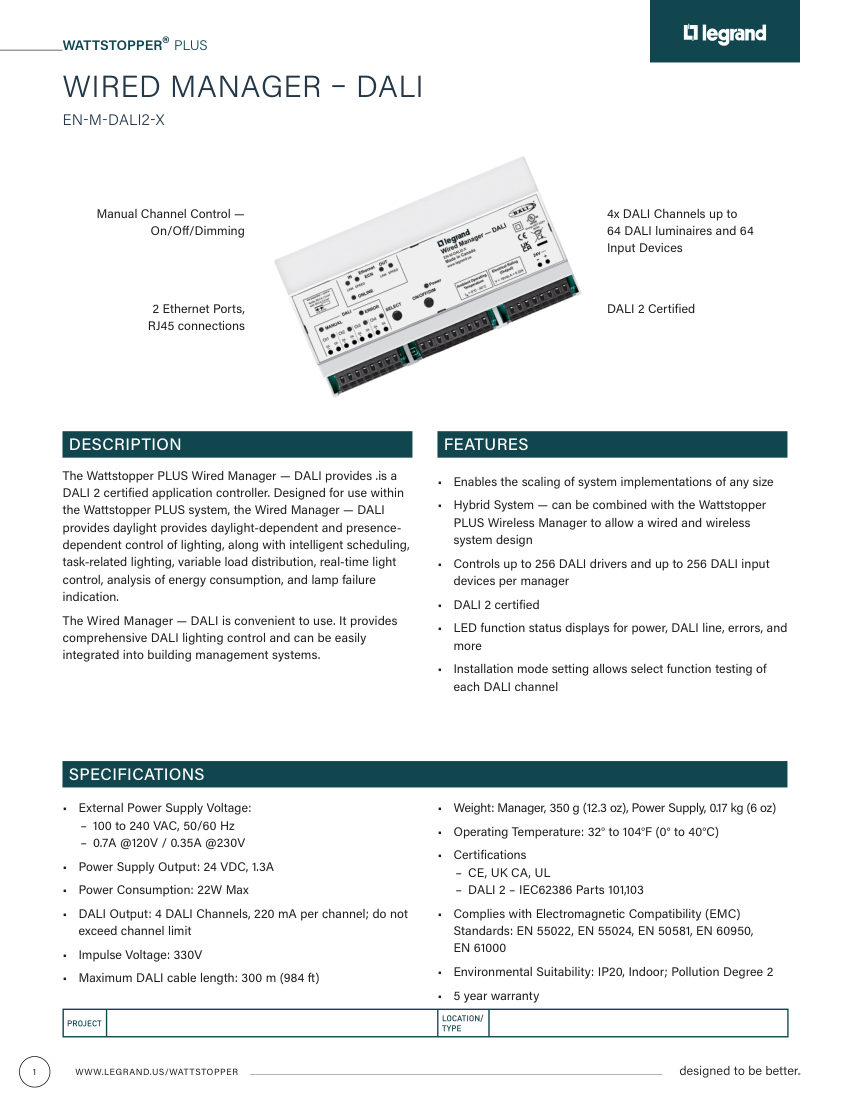

Legrand BCS-WS-CS-WiredManagerDALIcutsheet-080242-r8 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
BCS-WS-CS-WiredManagerDALIcutsheet-080242-r8
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberBCS-WS-CS-WiredManagerDALIcutsheet-080242-r8
DescriptionLegrand DALI Lighting Controller (Wattstopper PLUS). Model EN-M-DALI2-X. 4 DALI channels supporting up to 64 luminaires and 64 input devices; Controls up to 256 DALI drivers and 256 DALI input devices per manager
Power supply output24 VDC, 1.3A
Maximum DALI cable length300 m (984 ft). endConnection: RJ45 Ethernet, Push-in terminals
MountingDIN rail
Dimensions160 x 90 x 57.5 mm
ComplianceCE, UK CA, UL, DALI 2, IEC62386, EN 55022, EN 55024, EN 50581, EN 60950, EN 61000
Voltage100-240 VAC, 50/60 Hz.
