LegrandBCS-WS-CS-WS-250-29004-0816
Legrand Passive Infrared Wall Switch Occupancy Sensor (Occupancy Sensors). Model WS-250. 180° coverage with maximum area of 900 ft²; Time delay adjustable from 30 seconds to 30 minutes; Built-in light level sensor adjustable from 2 to 200 footcandles; Shallow 1" back housing with 6" flying leads. mounting: Wall
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Legrand
- Catalog no.
- BCS-WS-CS-WS-250-29004-0816
- Product type
- Electrical
- MasterFormat
- 26

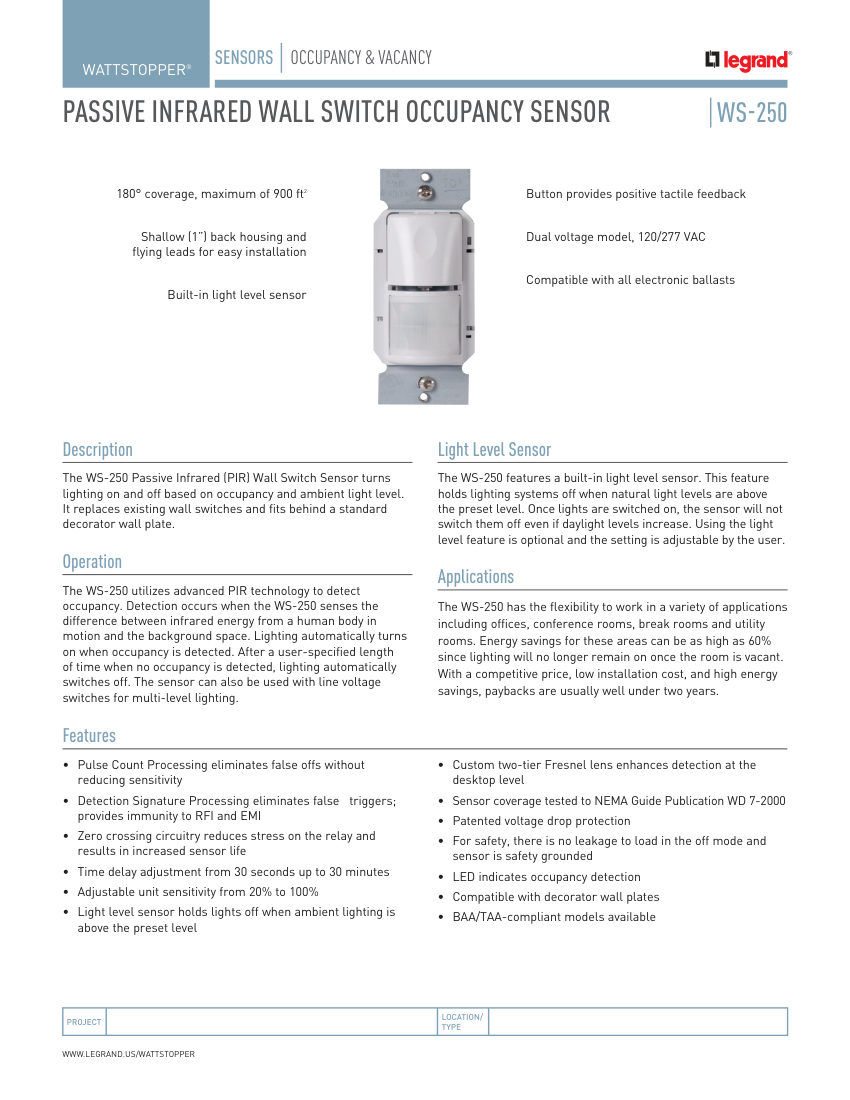

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | BCS-WS-CS-WS-250-29004-0816 |
|---|---|
| Description | Legrand Passive Infrared Wall Switch Occupancy Sensor (Occupancy Sensors). Model WS-250. 180° coverage with maximum area of 900 ft²; Time delay adjustable from 30 seconds to 30 minutes; Built-in light level sensor adjustable from 2 to 200 footcandles; Shallow 1" back housing with 6" flying leads. mounting: Wall |
| Dimensions | 2.6" x 1.7" x 1.55" (66.0mm x 43.1mm x 39.4mm) |
| Compliance | UL and cUL listed |
| Voltage | 120/277VAC, 60Hz, or 347VAC, 60Hz. |
