DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

LegrandCABCS0167.C UDOCABCS0167.C - UDO

Legrand Universal Hang-On Dropout Kit (Cablofil Wire Mesh Accessory). Model UDO##KITxx. No wire basket cutting required; Fits 54, 105, & 150 Cablofil Wire Mesh Series; Features cable hold-down slots; Ideal for fiber optic dropouts. finish: EZ (Electrozinc), BL (Black)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCABCS0167.C---UDO.pdfData sheet

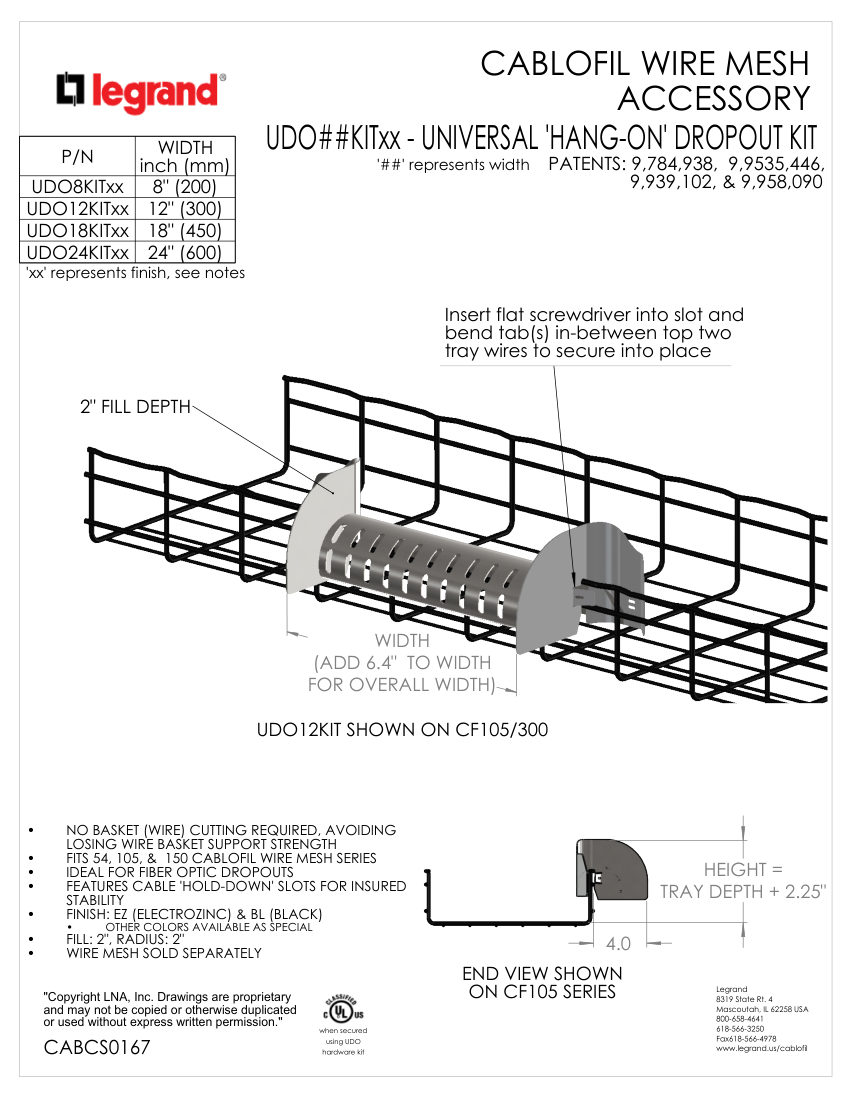

Legrand CABCS0167.C - UDO cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
CABCS0167.C - UDO
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCABCS0167.C - UDO
DescriptionLegrand Universal Hang-On Dropout Kit (Cablofil Wire Mesh Accessory). Model UDO##KITxx. No wire basket cutting required; Fits 54, 105, & 150 Cablofil Wire Mesh Series; Features cable hold-down slots; Ideal for fiber optic dropouts. finish: EZ (Electrozinc), BL (Black)
MountingHang-on, fits 54, 105, & 150 series
DimensionsWidths: 8" (200), 12" (300), 18" (450), 24" (600)
Fill Depth2"
Radius2"
CompliancePatents: 9,784,938, 9,9535,446, 9,939,102, 9,958,090.
