DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED
LegrandCABCS1142
Legrand Horizontal Fitting (Cable Tray). Model CABCS1142. Standard Horizontal Tee; Welded construction
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Legrand
- Catalog no.
- CABCS1142
- Product type
- Electrical
- MasterFormat
- 26

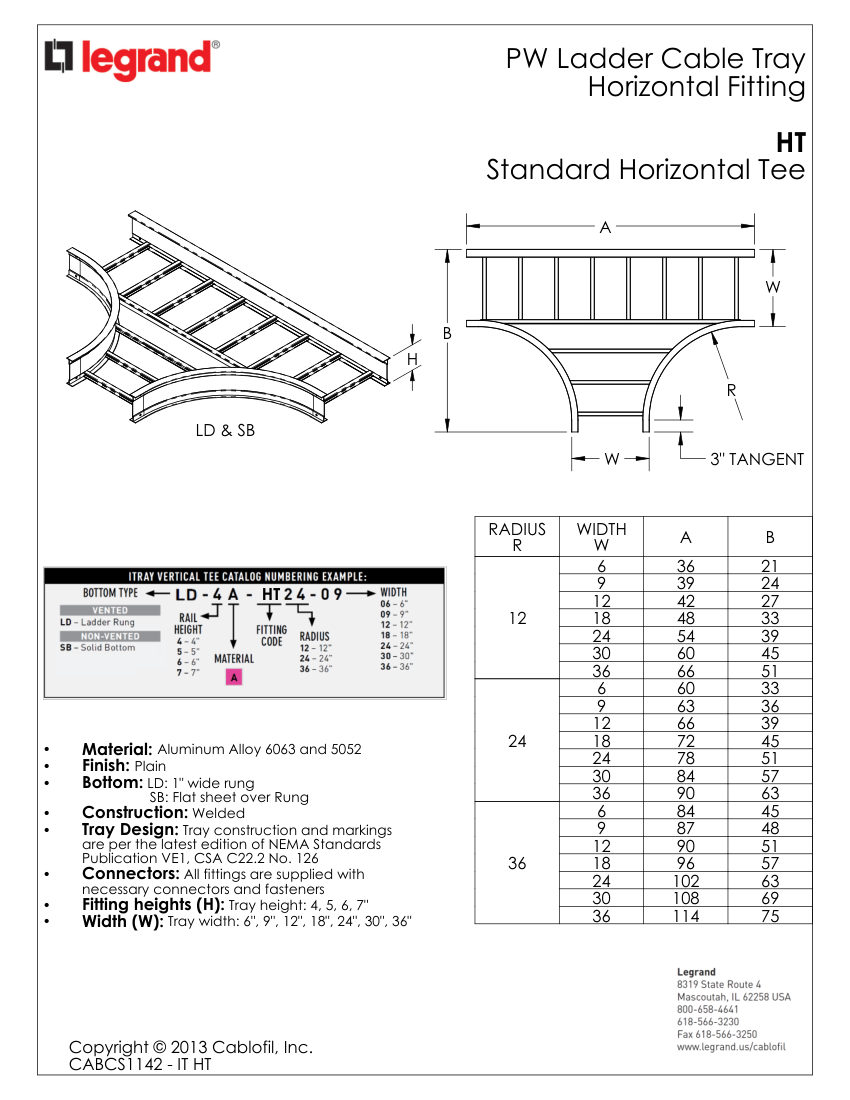

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | CABCS1142 |
|---|---|
| Description | Legrand Horizontal Fitting (Cable Tray). Model CABCS1142. Standard Horizontal Tee; Welded construction |
| Bottom options | LD (1" wide rung) or SB (Flat sheet over Rung); Supplied with necessary connectors and fasteners. material: Aluminum Alloy 6063 and 5052 |
| Finish | Plain |
| Dimensions | Width: 6", 9", 12", 18", 24", 30", 36" |
| Height | 4", 5", 6", 7" |
| Compliance | NEMA VE1, CSA C22.2 No. 126. |
