LegrandCS CAF3FloorBox WMCAF3FloorBox

Legrand Floor Box (Wiremold). Model CAF3. Shallow design with 3" [76.2mm] overall depth; Supports up to 3 gangs of power, communication, and A/V devices; Hinged door opens 180 degrees; Compatible with raised and wood floor applications. material: Stamped steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCAF3FloorBox.pdfData sheet

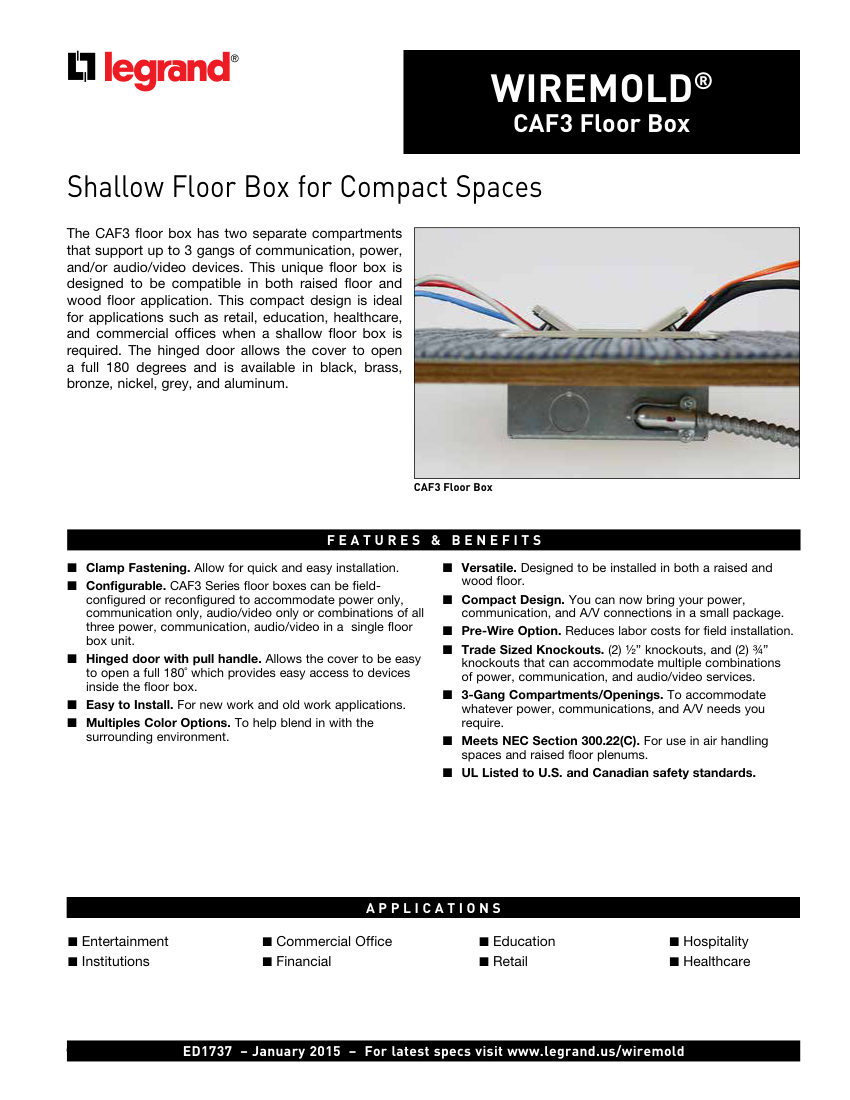

Legrand CAF3FloorBox cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
CAF3FloorBox
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCAF3FloorBox
DescriptionLegrand Floor Box (Wiremold). Model CAF3. Shallow design with 3" [76.2mm] overall depth; Supports up to 3 gangs of power, communication, and A/V devices; Hinged door opens 180 degrees; Compatible with raised and wood floor applications. material: Stamped steel
Connection size(2) 1/2" and (2) 3/4" trade sized knockouts
FinishBlack, brass, bronze, nickel, grey, aluminum
MountingClamp fastening for raised and wood floors
Dimensions7" x 5 7/8" x 3" [150mm x 181mm x 76.2mm]
ComplianceNEC Section 300.22(C), UL Listed.
