LegrandCS1035

Legrand Expansion Kit (Cable Tray Accessories). Model CS1035. Allows 0.600" (15.3 mm) expansion between cable tray sections; Compatible with CF54, CF105, CF150, or ZF150 series wire basket cable trays; Includes 2 ED275 splice bars, 8 CE25 splice washers, 8 1/4" x 1" carriage bolts, and 8 1/4" lock nuts

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCS1035.pdfData sheet

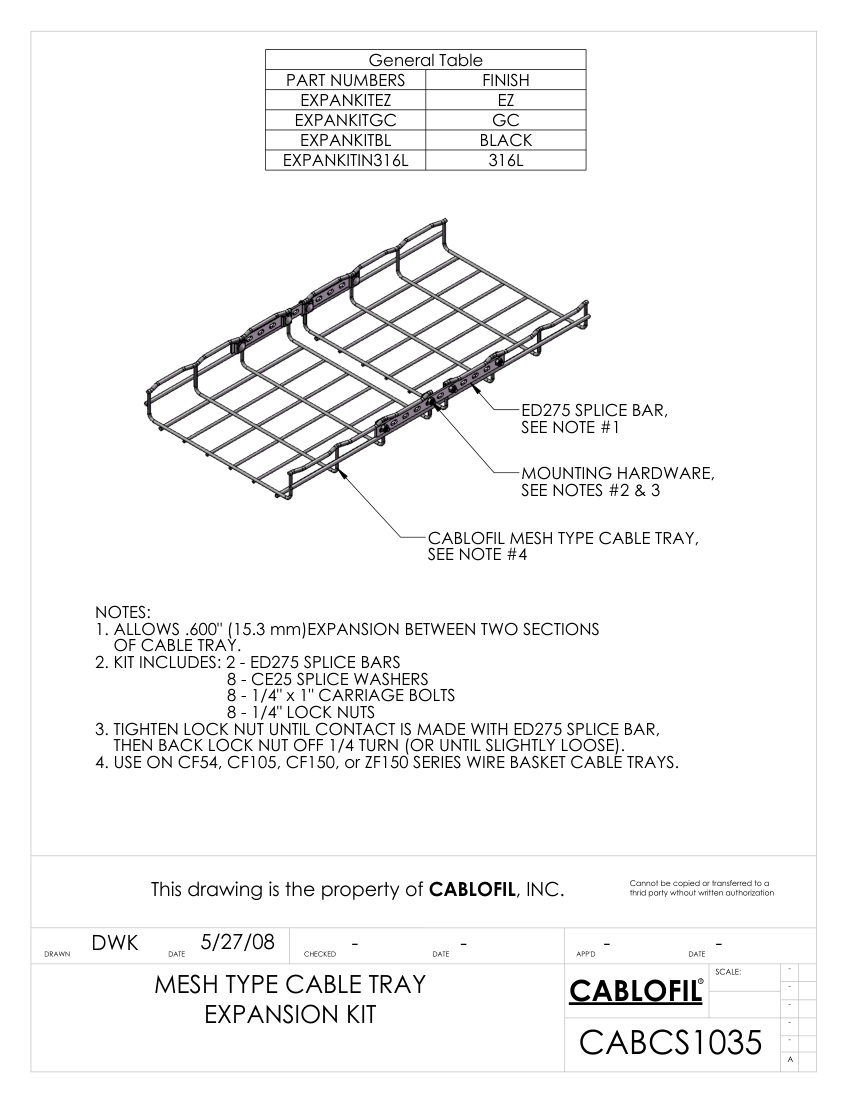

Legrand CS1035 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
CS1035
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCS1035
DescriptionLegrand Expansion Kit (Cable Tray Accessories). Model CS1035. Allows 0.600" (15.3 mm) expansion between cable tray sections; Compatible with CF54, CF105, CF150, or ZF150 series wire basket cable trays; Includes 2 ED275 splice bars, 8 CE25 splice washers, 8 1/4" x 1" carriage bolts, and 8 1/4" lock nuts
Available finishesEZ, GC, Black, 316L. finish: EZ, GC, BLACK, 316L
MountingCarriage Bolts, Lock Nuts, Splice Bars
Dimensions0.600" (15.3 mm) expansion.
