LegrandDigital Switch 2 Button W Infrared Red

Legrand Digital Switch (Digital Lighting Management). Model LMSW-102-R. 2-button push switch with infrared transceiver; Low voltage 24 VDC operation; Connects via Cat 5e cables with RJ-45 connectors; Controls loads connected to DLM room controllers. material: ABS

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFDigital-Switch-2-Button-W-Infrared-Red.pdfData sheet

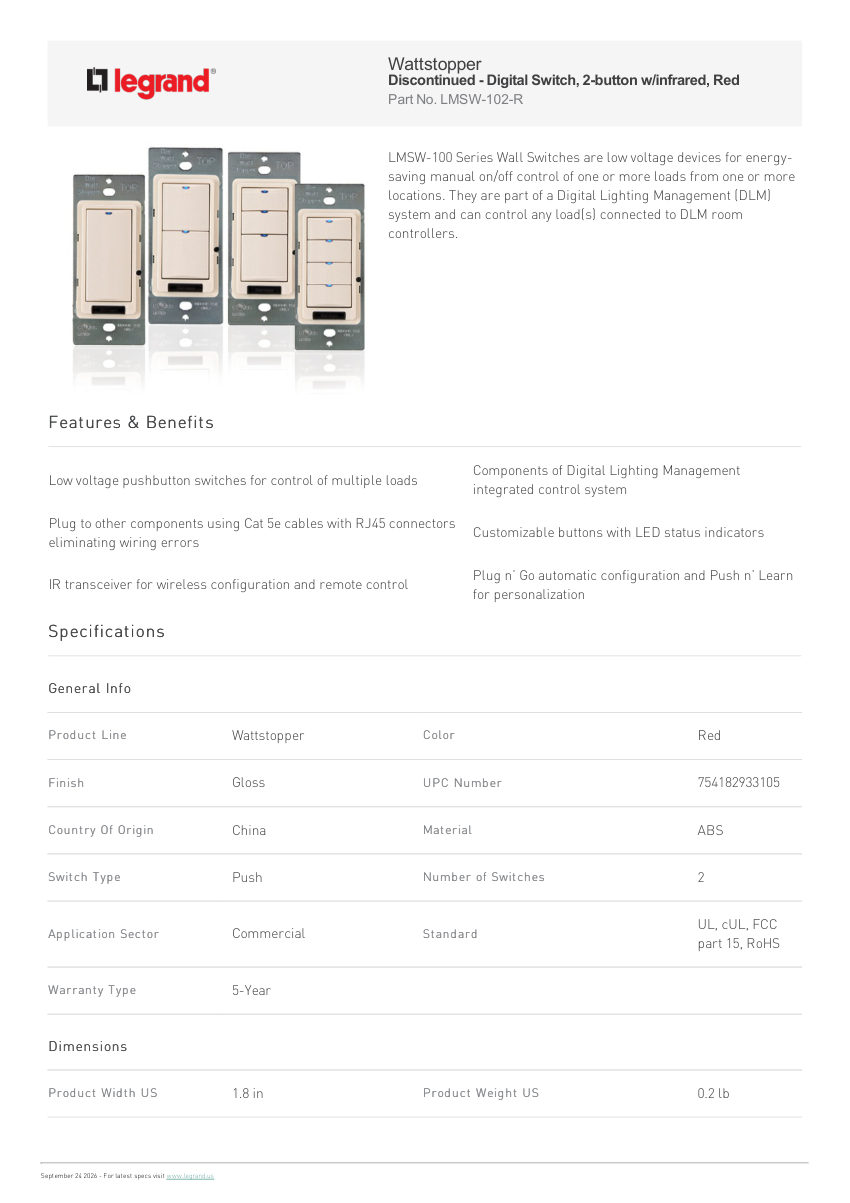

Legrand Digital Switch 2 Button W Infrared Red cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
Digital Switch 2 Button W Infrared Red
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberDigital Switch 2 Button W Infrared Red
DescriptionLegrand Digital Switch (Digital Lighting Management). Model LMSW-102-R. 2-button push switch with infrared transceiver; Low voltage 24 VDC operation; Connects via Cat 5e cables with RJ-45 connectors; Controls loads connected to DLM room controllers. material: ABS
Connection sizeRJ-45
End connectionRJ-45
FinishGloss
MountingJ-Box
Dimensions1.8 in W x 4.1 in H x 1.6 in D.
