Legrand High Density Fiber Modules, Cassettes, and Jack Panels (Infinium High Density Fiber). Model OR-HDFM, OR-HDCA6LC12, OR-HDCM-001, OR-PHAHJU, OR-PHDHJU. Modules available in LC duplex, SC simplex, and MPO configurations; Cassettes support 12-fiber MTP-to-LC with OM4+ or OS2 fiber; Jack panels available in 24-port (1RU), 48-port (1RU), and 72-port (2RU) sizes; Panels supplied with rear cable management bar, straps, and ties. material: Black housing

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFDPC-CS-HighDensityFiberDataSheet-0414.pdfData sheet

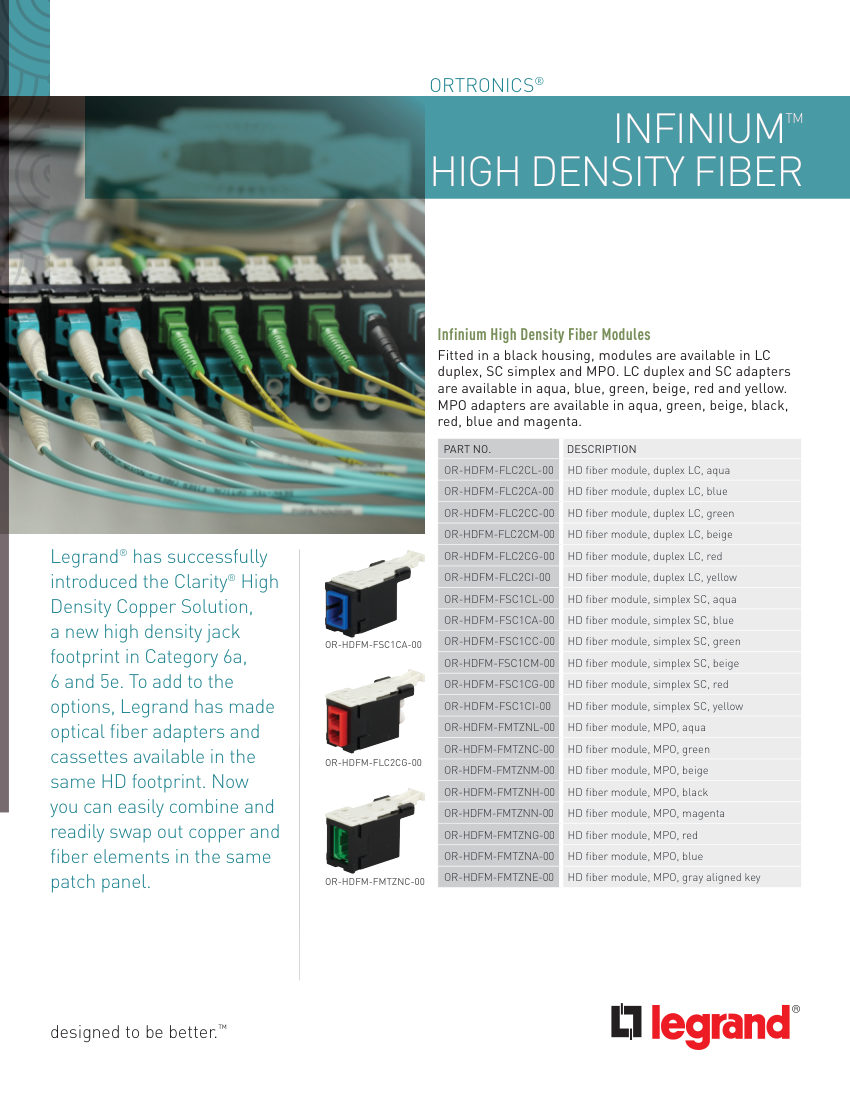

Legrand DPC-CS-HighDensityFiberDataSheet-0414 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
DPC-CS-HighDensityFiberDataSheet-0414
Product type
Electrical
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberDPC-CS-HighDensityFiberDataSheet-0414
DescriptionLegrand High Density Fiber Modules, Cassettes, and Jack Panels (Infinium High Density Fiber). Model OR-HDFM, OR-HDCA6LC12, OR-HDCM-001, OR-PHAHJU, OR-PHDHJU. Modules available in LC duplex, SC simplex, and MPO configurations; Cassettes support 12-fiber MTP-to-LC with OM4+ or OS2 fiber; Jack panels available in 24-port (1RU), 48-port (1RU), and 72-port (2RU) sizes; Panels supplied with rear cable management bar, straps, and ties. material: Black housing
Connection sizeLC duplex, SC simplex, MPO, MTP
End connectionLC, SC, MPO, MTP
FinishAqua, Blue, Green, Beige, Red, Yellow, Black, Magent
