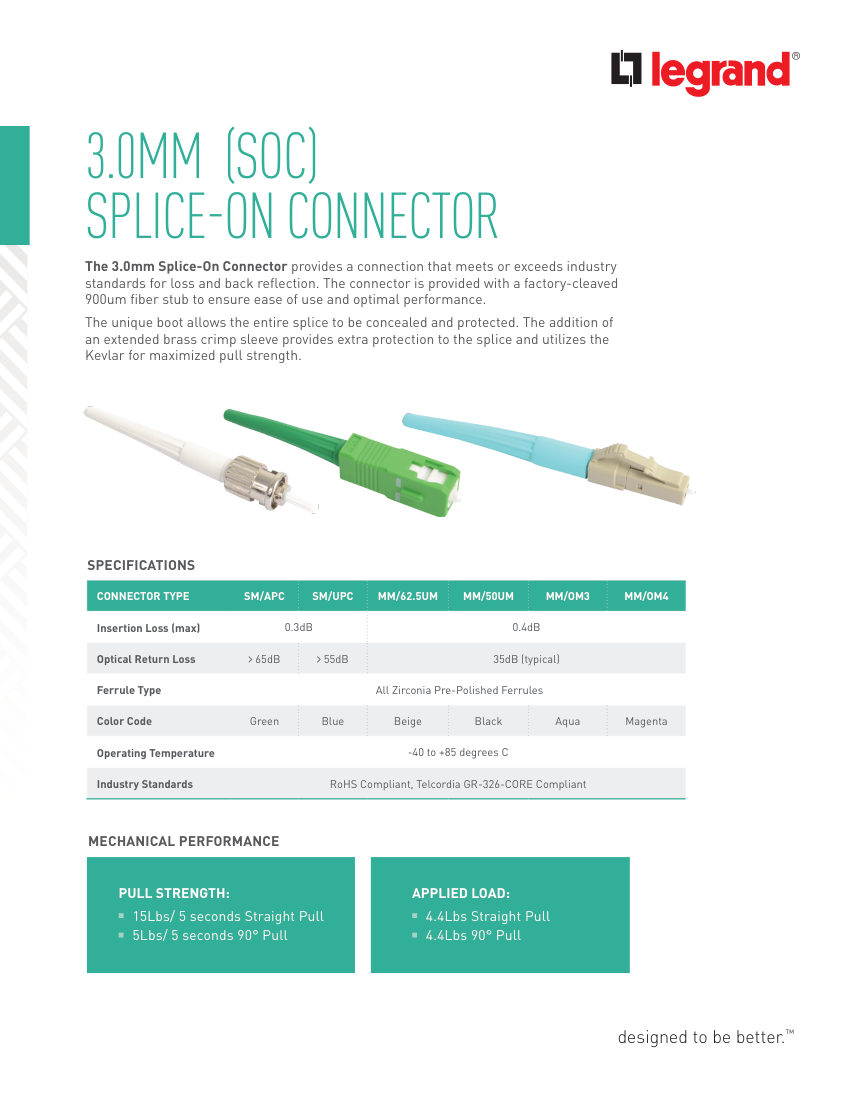

LegrandDPC-OR-CS-20500385-0622
Legrand Splice-On Connector (Fiber Optic Connectors). Model 20500385. Insertion Loss max 0.3dB (SM) / 0.4dB (MM); Optical Return Loss ≥65dB (SM/APC) / ≥55dB (SM/UPC); Operating Temperature -40 to +85°C; Pull Strength 15Lbs Straight / 5Lbs 90°. material: Brass crimp sleeve, Kevlar, Zirconia ferrule
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Legrand
- Catalog no.
- DPC-OR-CS-20500385-0622
- Product type
- Electrical
- MasterFormat
- 26
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | DPC-OR-CS-20500385-0622 |
|---|---|
| Description | Legrand Splice-On Connector (Fiber Optic Connectors). Model 20500385. Insertion Loss max 0.3dB (SM) / 0.4dB (MM); Optical Return Loss ≥65dB (SM/APC) / ≥55dB (SM/UPC); Operating Temperature -40 to +85°C; Pull Strength 15Lbs Straight / 5Lbs 90°. material: Brass crimp sleeve, Kevlar, Zirconia ferrule |
| Connection size | 3.0mm |
| End connection | ST, SC, LC |
| Compliance | RoHS, Telcordia GR-326-CORE. |
