LegrandEF000016
Legrand Vertical Outside 90° Elbow (Ladder Cable Tray). Model EF000016. Vertical Outside 90° Elbow fitting; Constructed from Aluminum Alloy 6063 and 5052; Welded construction with Plain finish; Complies with NEMA VE1 and CSA C22.2 No. 126. material: Aluminum Alloy 6063 and 5052
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Legrand
- Catalog no.
- EF000016
- Product type
- Electrical
- MasterFormat
- 26
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | EF000016 |
|---|---|
| Description | Legrand Vertical Outside 90° Elbow (Ladder Cable Tray). Model EF000016. Vertical Outside 90° Elbow fitting; Constructed from Aluminum Alloy 6063 and 5052; Welded construction with Plain finish; Complies with NEMA VE1 and CSA C22.2 No. 126. material: Aluminum Alloy 6063 and 5052 |
| Finish | Plain |
| Dimensions | Radius: 12, 24, 36 |
| Height | 4, 5, 6, 7 |
| Compliance | NEMA VE1, CSA C22.2 No. 126. |

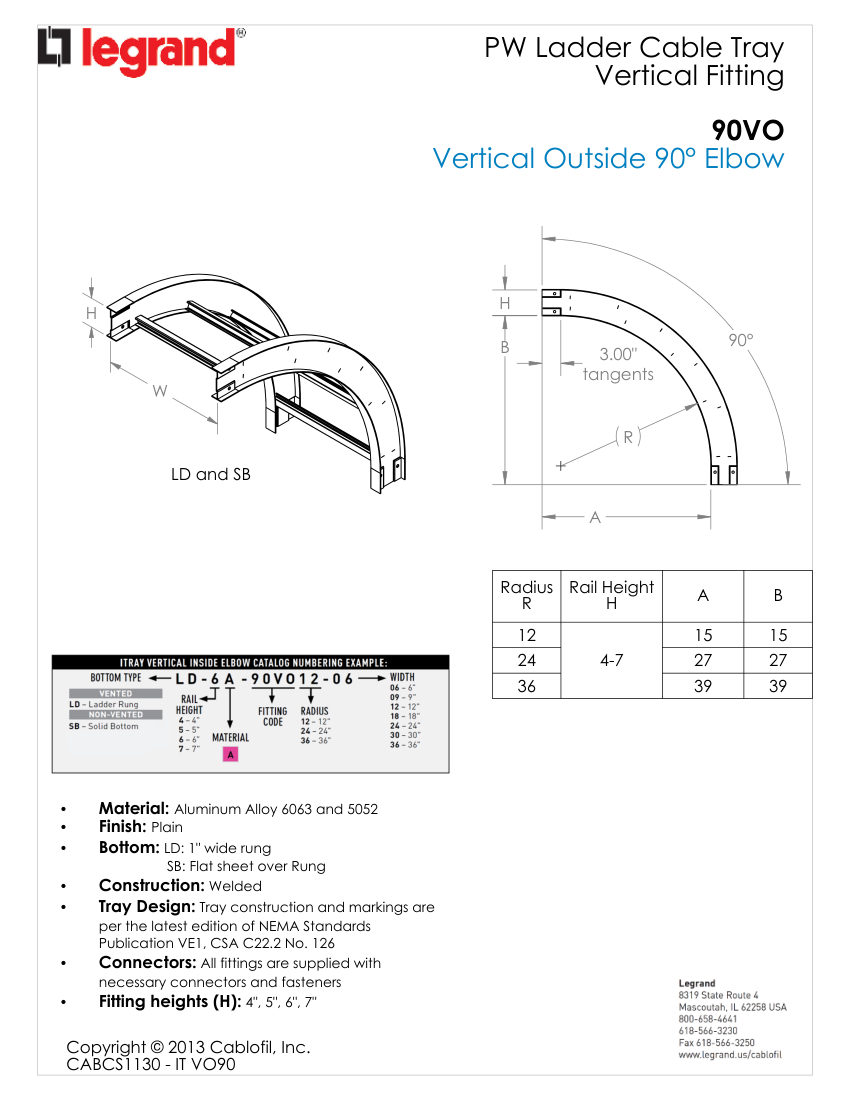

- Official cut sheet, indexed
