LegrandEWS CB CS Steel Ladder Straight Sections 4inch 1D83EWS-CB-CS-Steel-Ladder-Straight-Sections-4inch-1D83

Legrand Steel Ladder Cable Tray (Cable Tray). Model 1D83. NEMA Tray Type: Two Rail Ladder

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWS-CB-CS-Steel-Ladder-Straight-Sections-4inch-1D83.pdfData sheet

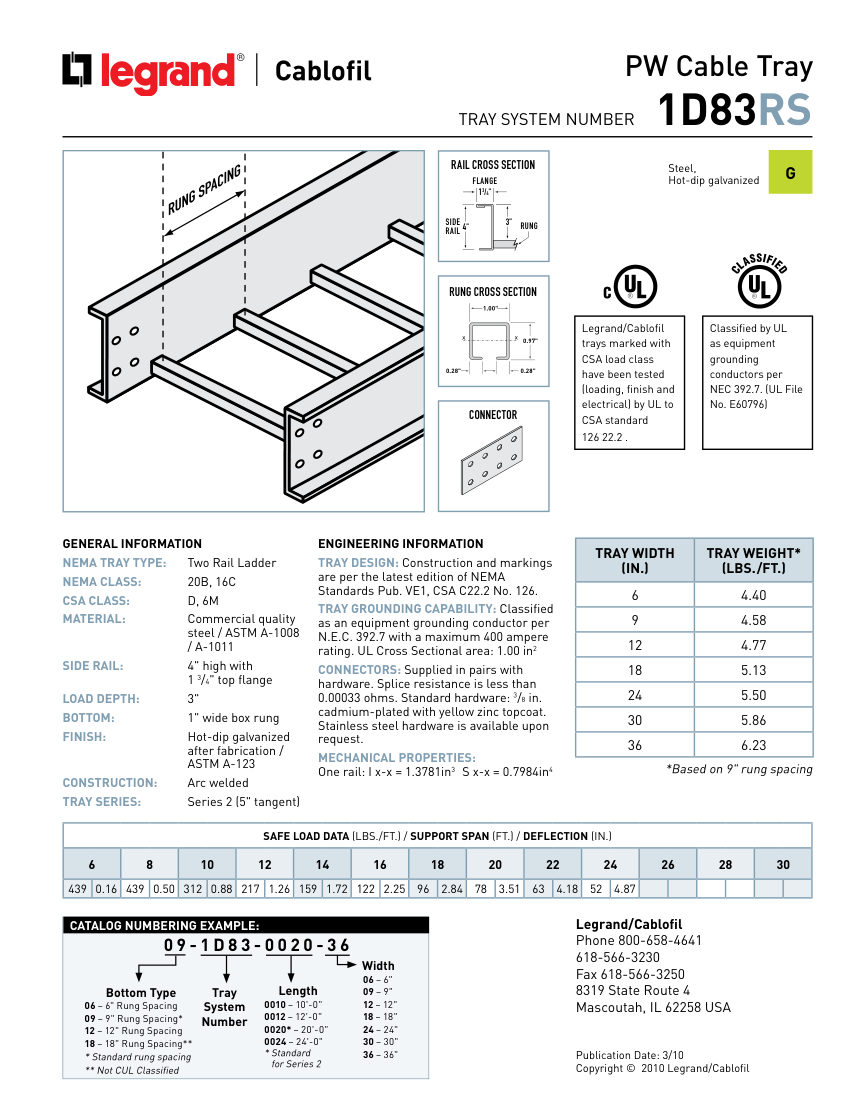

Legrand EWS-CB-CS-Steel-Ladder-Straight-Sections-4inch-1D83 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
EWS-CB-CS-Steel-Ladder-Straight-Sections-4inch-1D83
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWS-CB-CS-Steel-Ladder-Straight-Sections-4inch-1D83
DescriptionLegrand Steel Ladder Cable Tray (Cable Tray). Model 1D83. NEMA Tray Type: Two Rail Ladder
Tray System Number1D83RS
Grounding CapabilityClassified as equipment grounding conductor per NEC 392.7 (Max 400A)
Standard Rung Spacing9 inches. material: Commercial quality steel / ASTM A-1008 / A-1011
FinishHot-dip galvanized after fabrication / ASTM A-123
Dimensions4" high side rail, 3" load depth, 1" wide box rung
ComplianceNEMA 20B, 16C; CSA D, 6M; UL Listed (File No. E60796).

Also cataloged as: EWS-CB-CS-Steel-Ladder-Straight-Sections-6inch-1F45, EWS-CB-CS-Steel-Ladder-Straight-Sections-5inch-1E45, EWS-CB-CS-Steel-Ladder-Straight-Sections-6inch-1F54
