Legrand Under-Carpet Power and Data Raceway Kit (Connectrac Express Kits). Model CS3254. Holds 0-8 data cables; Withstands 250 lb individual point load; Includes 25' prewired in-feed; Features 4 NEMA 5-20R receptacles. material: Extruded Aluminum, PC Plastic, PP Plastic, MDF, Galvanized Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWS-CT-CS-Connectrac-Express-Kits-CS3254-CO-1025.pdfData sheet

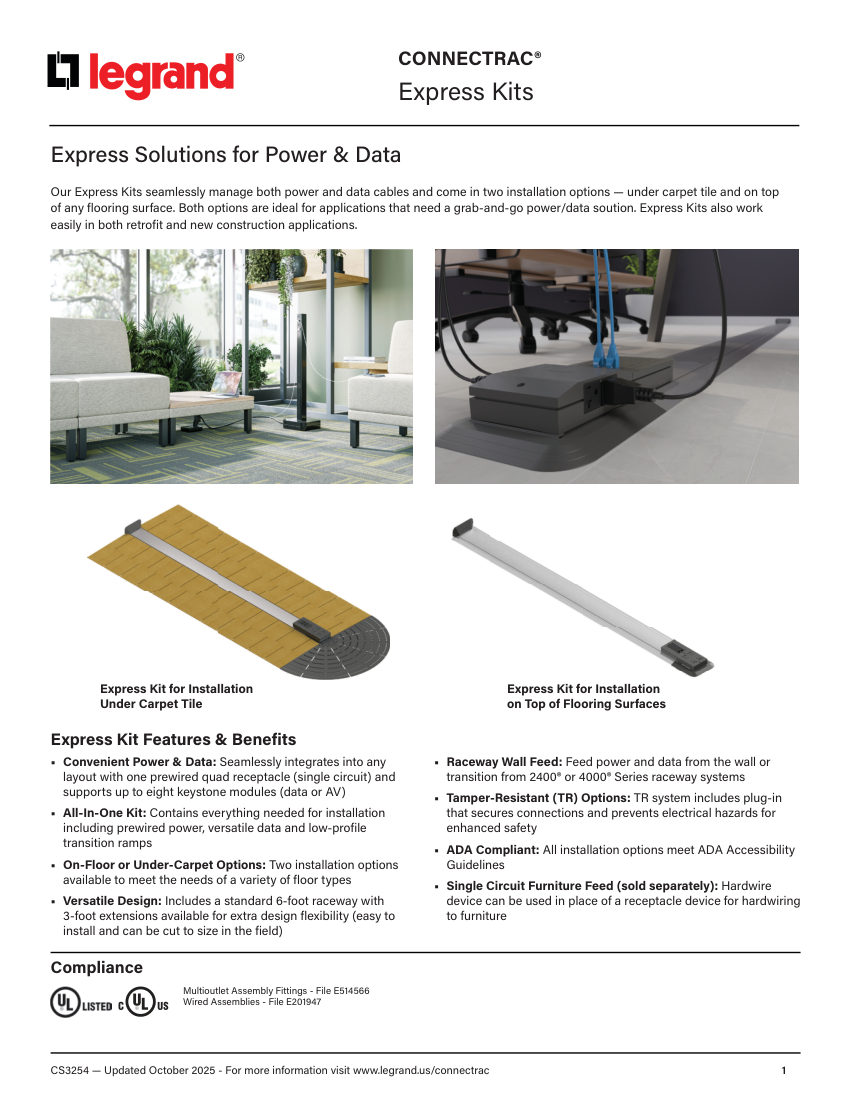

Legrand EWS-CT-CS-Connectrac Express Kits-CS3254-CO-1025 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
EWS-CT-CS-Connectrac Express Kits-CS3254-CO-1025
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWS-CT-CS-Connectrac Express Kits-CS3254-CO-1025
DescriptionLegrand Under-Carpet Power and Data Raceway Kit (Connectrac Express Kits). Model CS3254. Holds 0-8 data cables; Withstands 250 lb individual point load; Includes 25' prewired in-feed; Features 4 NEMA 5-20R receptacles. material: Extruded Aluminum, PC Plastic, PP Plastic, MDF, Galvanized Steel
Connection sizeNEMA 5-20R
End connectionScrew mount to subfloor
MountingUnder Carpet Tile
Dimensions34 inches width, 6 ft length
ComplianceUL File E514566, UL File E201947, ADA Compliant.
