DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

LegrandEWS PS CS CableReel CS3230EWS-PS-CS-CableReel-CS3230

Legrand Cable Reel (1000 Series Commercial/Light Industrial Cable Reel). Model CS3230. 20 amp, 125 volt slip ring; Retracts cables up to 50 feet vertically; Six-foot feeder cord; Rated for indoor use. material: Black molded nylon with reinforced steel frame

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWS-PS-CS-CableReel-CS3230.pdfData sheet

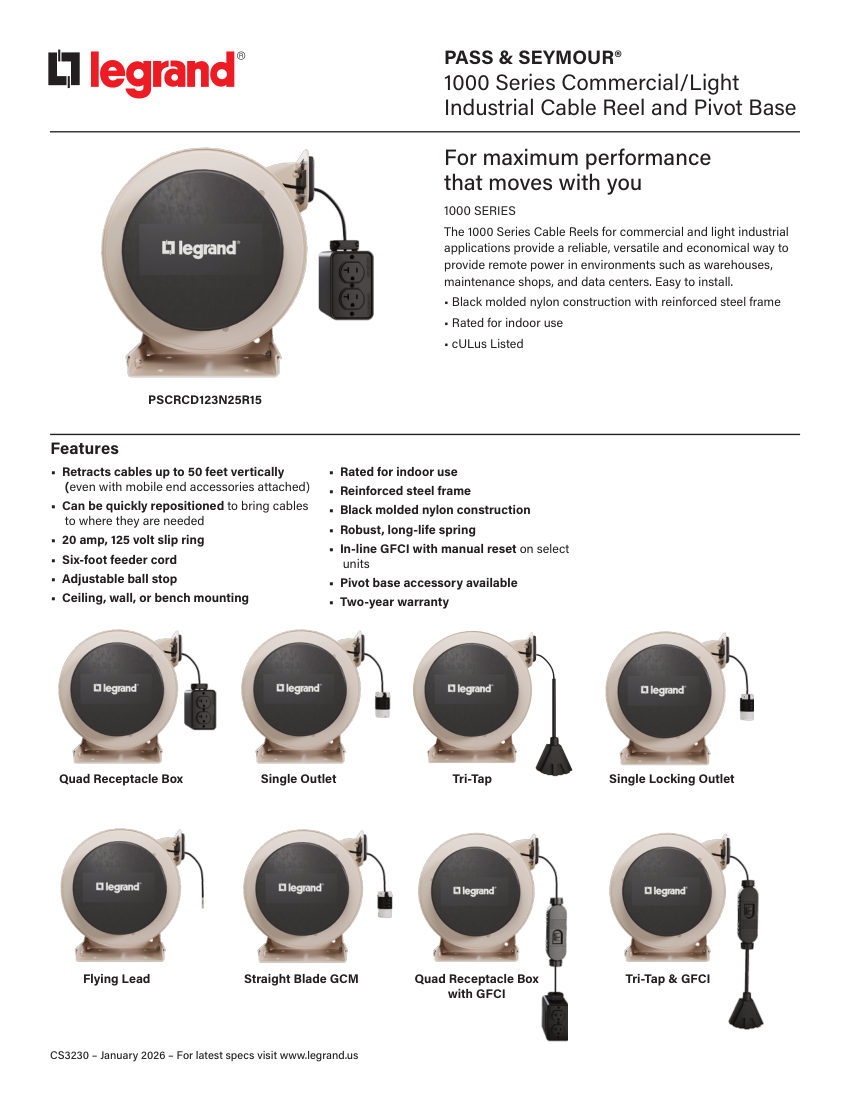

Legrand EWS-PS-CS-CableReel-CS3230 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
EWS-PS-CS-CableReel-CS3230
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWS-PS-CS-CableReel-CS3230
DescriptionLegrand Cable Reel (1000 Series Commercial/Light Industrial Cable Reel). Model CS3230. 20 amp, 125 volt slip ring; Retracts cables up to 50 feet vertically; Six-foot feeder cord; Rated for indoor use. material: Black molded nylon with reinforced steel frame
End connectionFlying Lead, Locking Single Outlet, Quad RB, Single Outlet, Straight Blade GCM, Tri-Tap
FinishBlack
MountingCeiling, wall, or bench
CompliancecULus Listed
Voltage125V.
