LegrandEWS PS CS Commercial Wave Switch CSWV1277 3213 1124EWS-PS-CS-Commercial Wave Switch CSWV1277-3213-1124

Legrand Touchless Wave Switch (Commercial Wave Switch). Model CSWV1277. 10A rating at 120/277VAC; Adjustable activation distance 1/2" to 4"; Rated for 1/4 HP motor loads; 8kA max surge capability. material: Impact-resistant thermoplastic cover, Polycarbonate backbody

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWS-PS-CS-Commercial-Wave-Switch-CSWV1277-3213-1124.pdfData sheet

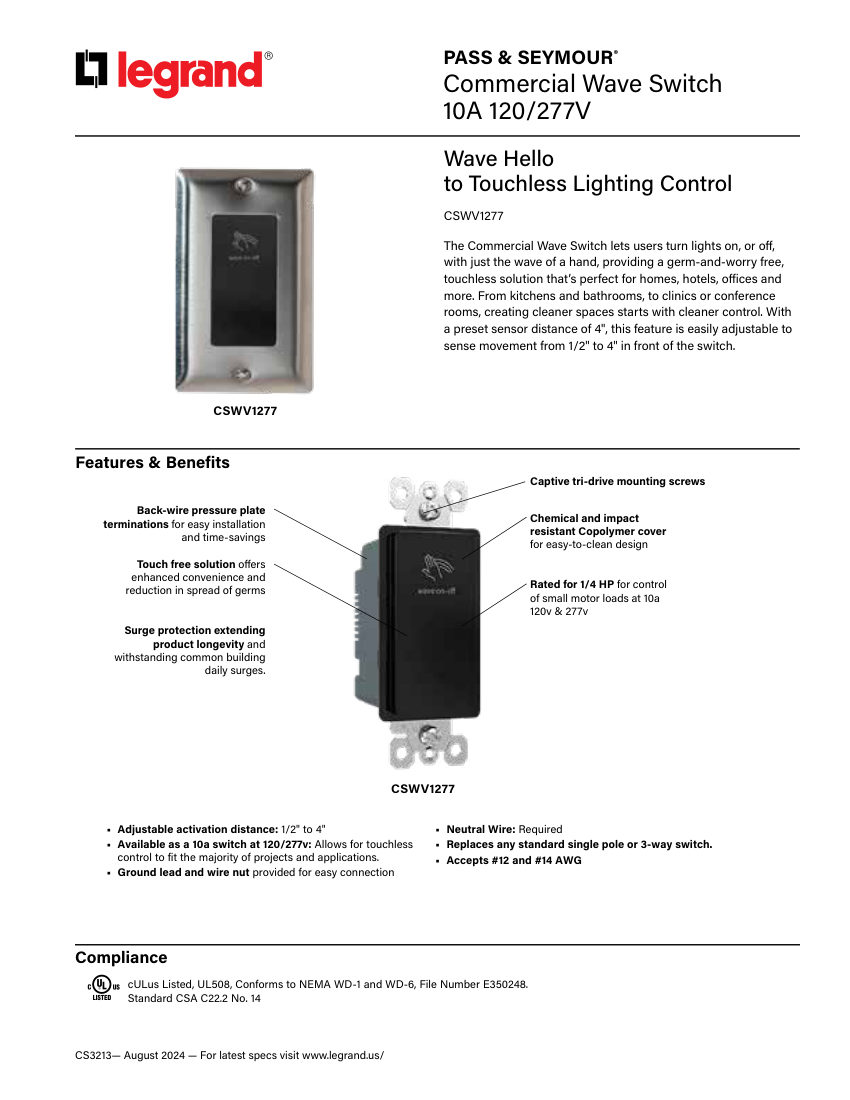

Legrand EWS-PS-CS-Commercial Wave Switch CSWV1277-3213-1124 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
EWS-PS-CS-Commercial Wave Switch CSWV1277-3213-1124
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWS-PS-CS-Commercial Wave Switch CSWV1277-3213-1124
DescriptionLegrand Touchless Wave Switch (Commercial Wave Switch). Model CSWV1277. 10A rating at 120/277VAC; Adjustable activation distance 1/2" to 4"; Rated for 1/4 HP motor loads; 8kA max surge capability. material: Impact-resistant thermoplastic cover, Polycarbonate backbody
Connection size#14-12 AWG
End connectionBack-wire pressure plate
FinishBlack
MountingCaptive tri-drive mounting screws
Dimensions4.20" x 3.28" x 1.34" depth.
