Legrand Lighted Toggle Switch (Pass & Seymour Extra Heavy-Duty Lighted Switches). Model PS20AC1-CSL. 20 Amp Rating; Lighted when OFF (Toggle); 50,000 cycle endurance minimum; Operating temperature -40°C to +115°C. material: Glass-Reinforced Nylon Back Body, Nickel-Plated Brass Strap, Silver Cadmium Oxide Contacts

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWS-PS-CS-ExtraHeavyDuty-3281.pdfData sheet

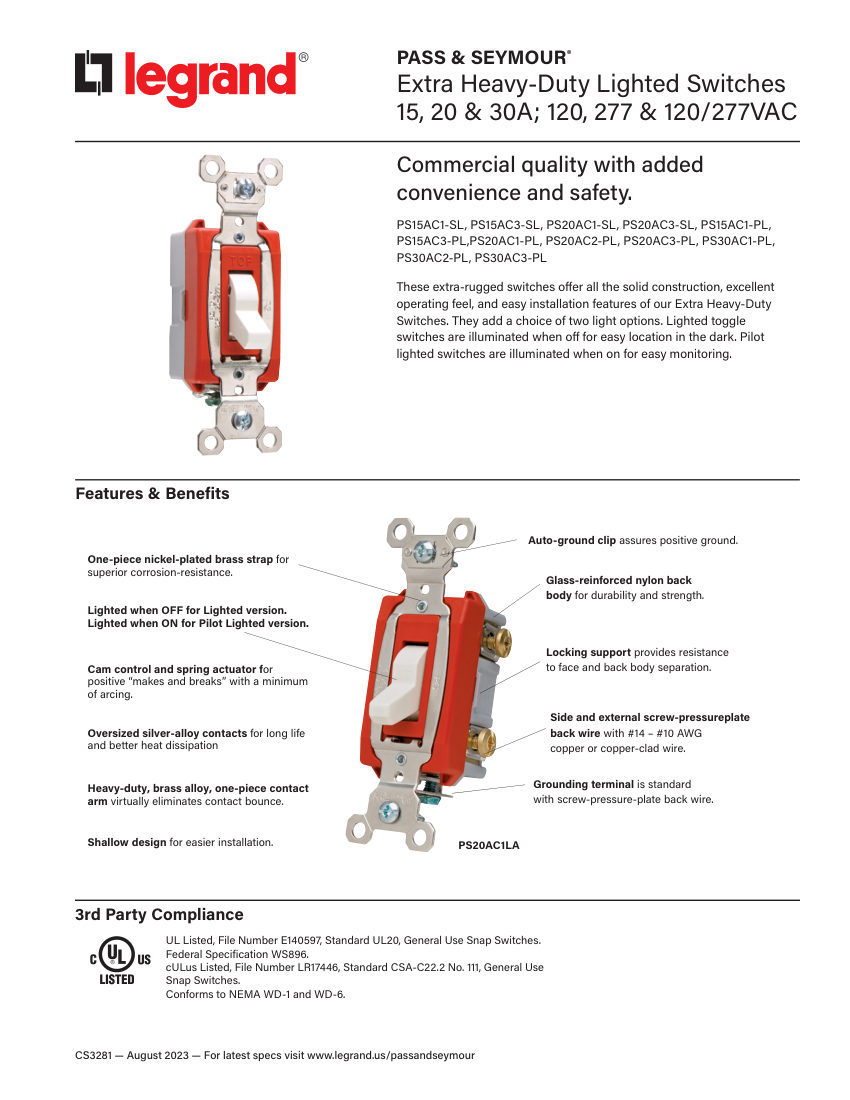

Legrand EWS-PS-CS-ExtraHeavyDuty-3281 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
EWS-PS-CS-ExtraHeavyDuty-3281
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWS-PS-CS-ExtraHeavyDuty-3281
DescriptionLegrand Lighted Toggle Switch (Pass & Seymour Extra Heavy-Duty Lighted Switches). Model PS20AC1-CSL. 20 Amp Rating; Lighted when OFF (Toggle); 50,000 cycle endurance minimum; Operating temperature -40°C to +115°C. material: Glass-Reinforced Nylon Back Body, Nickel-Plated Brass Strap, Silver Cadmium Oxide Contacts
Connection size#14 – #10 AWG
End connectionScrew-Pressure-Plate Back Wire
FinishClear
MountingStandard Switch Box
ComplianceUL Listed (E140597), cULus Listed (LR17446), NEMA WD-1, WD-6.
