DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

LegrandEWS PS CS HeavyDutyISol 3356EWS-PS-CS-HeavyDutyISol-3356

Legrand Duplex Receptacle (Isolated Ground Receptacles). Model IG5262. 15A 125V Rating; NEMA 5-15R Configuration; Isolated Ground Terminal; Patented Screw-Pressure Plate Back Wire Clamp. material: Nylon face, PVC back body, Brass contacts, Plated steel strap

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWS-PS-CS-HeavyDutyISol-3356.pdfData sheet

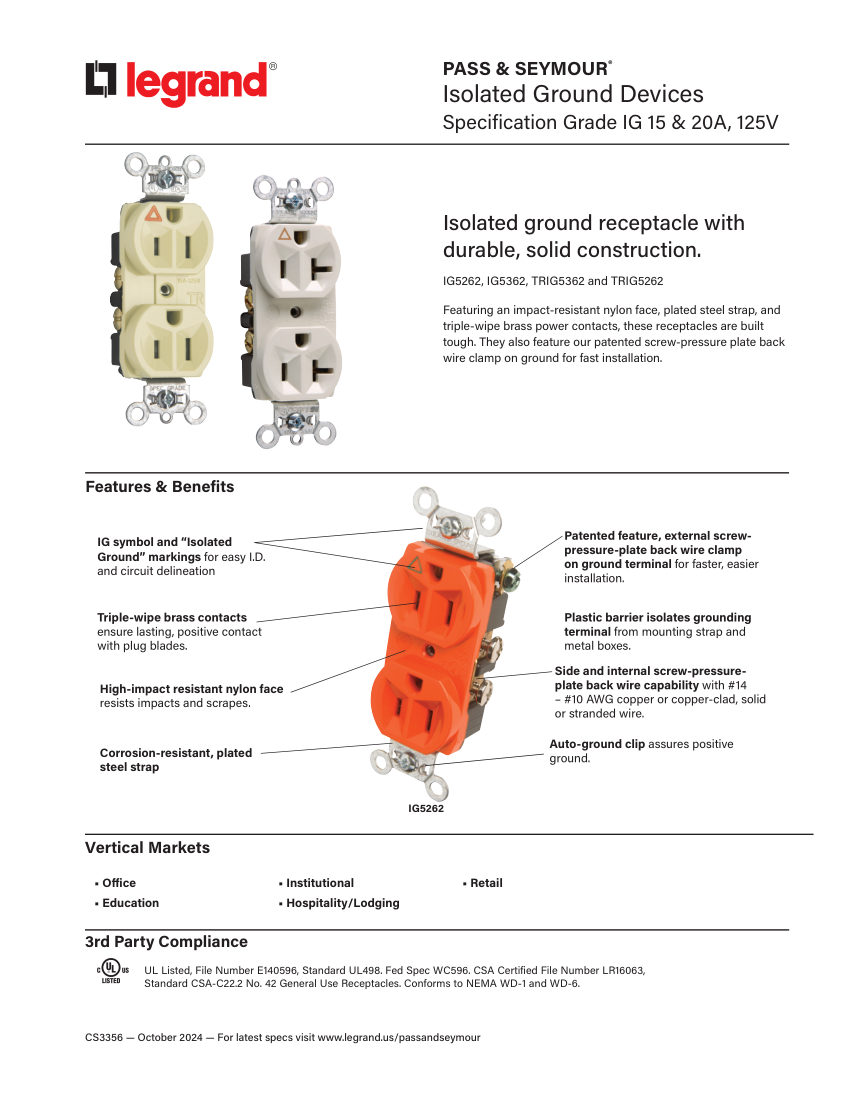

Legrand EWS-PS-CS-HeavyDutyISol-3356 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
EWS-PS-CS-HeavyDutyISol-3356
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWS-PS-CS-HeavyDutyISol-3356
DescriptionLegrand Duplex Receptacle (Isolated Ground Receptacles). Model IG5262. 15A 125V Rating; NEMA 5-15R Configuration; Isolated Ground Terminal; Patented Screw-Pressure Plate Back Wire Clamp. material: Nylon face, PVC back body, Brass contacts, Plated steel strap
Connection size#14 - #10 AWG
End connectionBack & Side Wire
FinishOrange
MountingPlated steel strap
Dimensions1.322" x 1.104" x 3.281".
