DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

LegrandEWS PS CS HGExtraHeavyDutyPlugTail PT8200 3416EWS-PS-CS-HGExtraHeavyDutyPlugTail-PT8200-3416

Legrand Extra Heavy-Duty Receptacle (Hospital Grade Devices). Model PT8200. 15 & 20A, 125V rating; Dielectric voltage withstands 2000V minimum; Maximum temperature rise 30°C at full-rated current; Operating temperature range -40°C to +60°C. material: Brass contacts, Polycarbonate connector housing

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWS-PS-CS-HGExtraHeavyDutyPlugTail-PT8200-3416.pdfData sheet

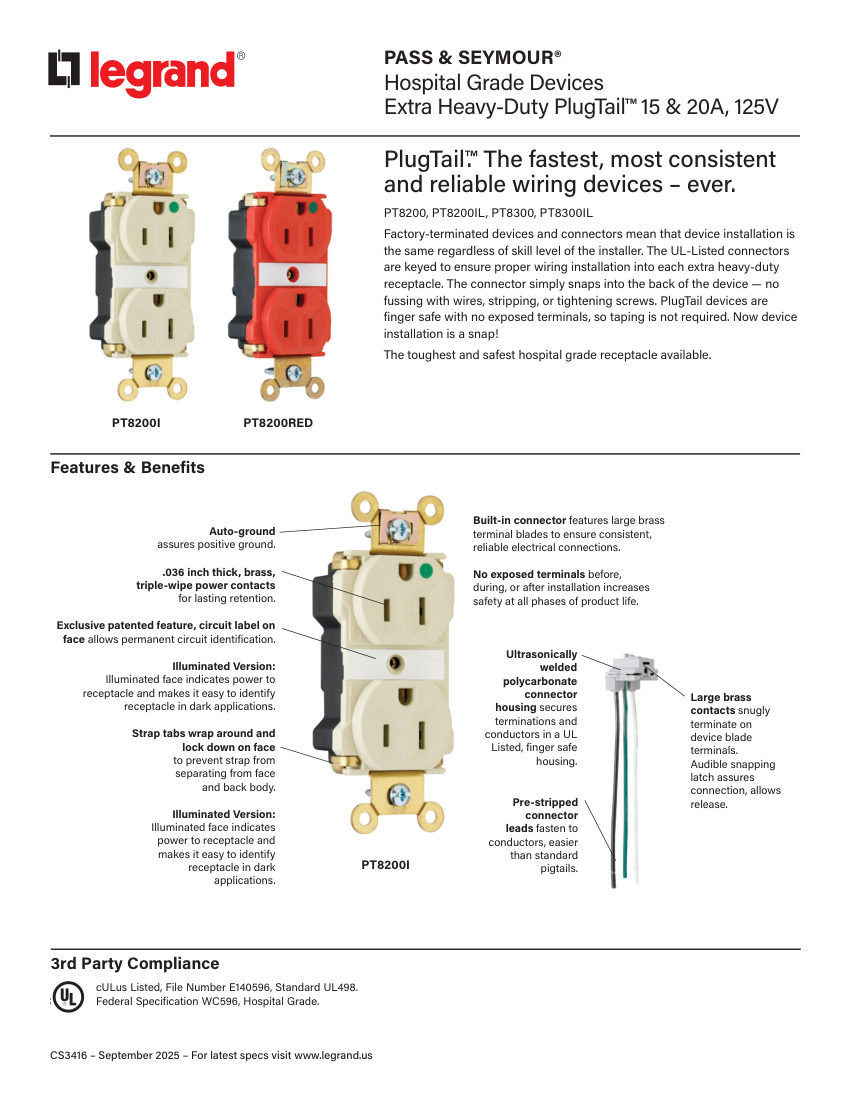

Legrand EWS-PS-CS-HGExtraHeavyDutyPlugTail-PT8200-3416 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
EWS-PS-CS-HGExtraHeavyDutyPlugTail-PT8200-3416
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWS-PS-CS-HGExtraHeavyDutyPlugTail-PT8200-3416
DescriptionLegrand Extra Heavy-Duty Receptacle (Hospital Grade Devices). Model PT8200. 15 & 20A, 125V rating; Dielectric voltage withstands 2000V minimum; Maximum temperature rise 30°C at full-rated current; Operating temperature range -40°C to +60°C. material: Brass contacts, Polycarbonate connector housing
Connection size#14 AWG - #10 AWG copper conductor
End connectionPlugTail Connector
MountingStrap tabs
Dimensions1.104" x 2.75" x 1.625"
CompliancecULus Listed, File Number E140596, Standard UL498, Federal Specification WC596.
