DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

LegrandEWS PS CS HGHeavyDutyDecoratorReceptacles CS3393 0225EWS-PS-CS-HGHeavyDutyDecoratorReceptacles-CS3393-0225

Legrand Heavy-Duty Decorator Receptacle (Hospital Grade Devices). Model TR26262HG, TR26362HG. Tamper-resistant 15 & 20A, 125V; Hospital Grade (Federal Specification WC596); Dual mechanical shutter system; Auto-ground clip for positive ground. material: Nylon face/back, Brass contacts, Plated steel strap

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWS-PS-CS-HGHeavyDutyDecoratorReceptacles-CS3393-0225.pdfData sheet

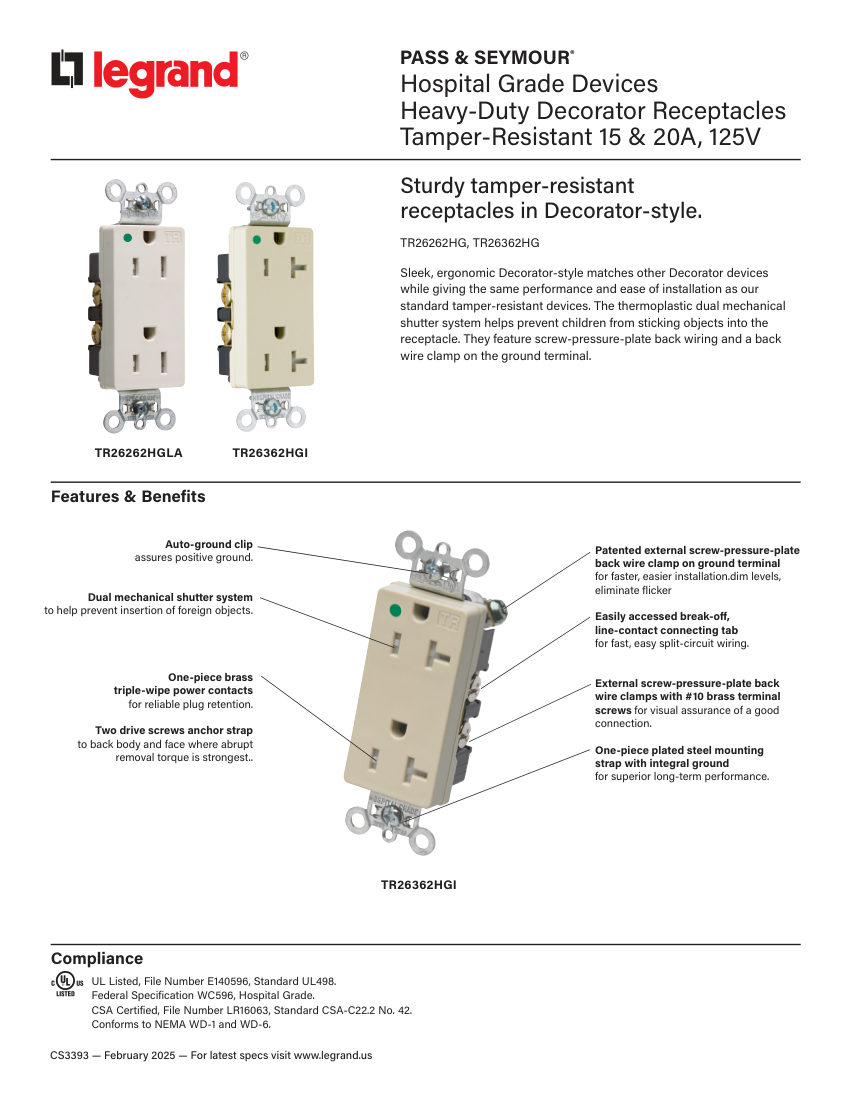

Legrand EWS-PS-CS-HGHeavyDutyDecoratorReceptacles-CS3393-0225 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
EWS-PS-CS-HGHeavyDutyDecoratorReceptacles-CS3393-0225
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWS-PS-CS-HGHeavyDutyDecoratorReceptacles-CS3393-0225
DescriptionLegrand Heavy-Duty Decorator Receptacle (Hospital Grade Devices). Model TR26262HG, TR26362HG. Tamper-resistant 15 & 20A, 125V; Hospital Grade (Federal Specification WC596); Dual mechanical shutter system; Auto-ground clip for positive ground. material: Nylon face/back, Brass contacts, Plated steel strap
Connection size#14 AWG – #10 AWG copper
End connectionScrew-pressure-plate back wiring
FinishNylon
MountingOne-piece plated steel mounting strap
Dimensions3.81" x 3.281" x 2.635".
