DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

LegrandEWS PS CS3394 Hospital Grade PlugLoad Decorator Devices TR2362HGC 3EWS-PS-CS3394 Hospital Grade PlugLoad Decorator Devices TR23

Legrand Tamper-Resistant Duplex Receptacle (Hospital Grade Plug Load Devices). Model TR26362HGC. 20A, 125V Tamper-Resistant; Hospital Grade Plug Load Fed Spec; Dual mechanical shutter system; Auto-ground clip with integral ground strap. material: Nylon face/back, Brass contacts, Plated steel strap

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWS-PS-CS3394-Hospital-Grade-PlugLoad-Decorator-Devices-TR23.pdfData sheet

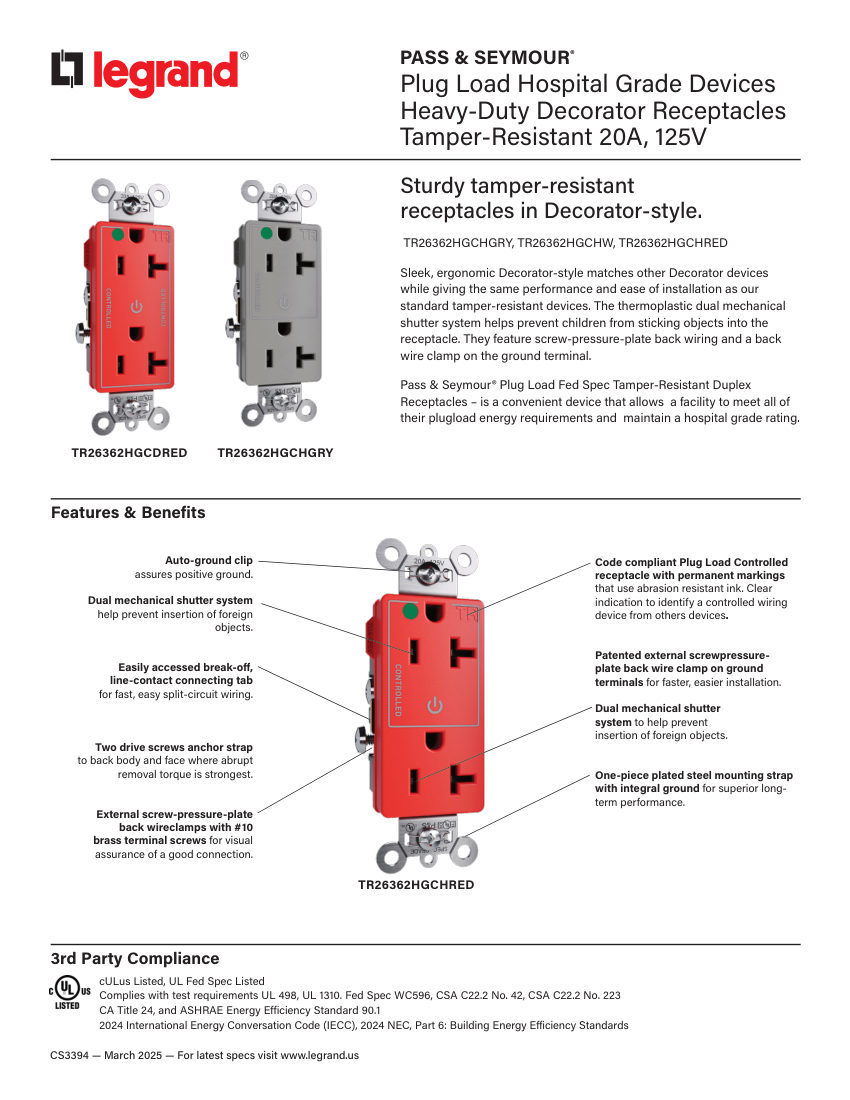

Legrand EWS-PS-CS3394 Hospital Grade PlugLoad Decorator Devices TR23 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
EWS-PS-CS3394 Hospital Grade PlugLoad Decorator Devices TR23
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWS-PS-CS3394 Hospital Grade PlugLoad Decorator Devices TR23
DescriptionLegrand Tamper-Resistant Duplex Receptacle (Hospital Grade Plug Load Devices). Model TR26362HGC. 20A, 125V Tamper-Resistant; Hospital Grade Plug Load Fed Spec; Dual mechanical shutter system; Auto-ground clip with integral ground strap. material: Nylon face/back, Brass contacts, Plated steel strap
Connection size#14 AWG – #10 AWG copper
End connectionScrew-pressure-plate back wire
FinishGray, White, Red
MountingOne-piece plated steel mounting strap
Dimensions2.635" x 3.81" x 3.281".
