DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

LegrandEWS PS CS3396 PlugTail Tamper Resistant Hospital Grade PlugLoad 5EWS-PS-CS3396_PlugTail Tamper Resistant Hospital Grade PlugL

Legrand Hospital Grade Tamper-Resistant Receptacle (Electrical Receptacles). Model PTTR26362HGCDW, PTTR26362HGCHRED. 20A, 125V Hospital Grade; Tamper-Resistant with dual mechanical shutter; Plug Load Controlled with permanent markings; Dielectric voltage withstands 2000V minimum. material: Brass contacts, UL94 V2 flammability

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWS-PS-CS3396_PlugTail-Tamper-Resistant-Hospital-Grade-PlugL.pdfData sheet

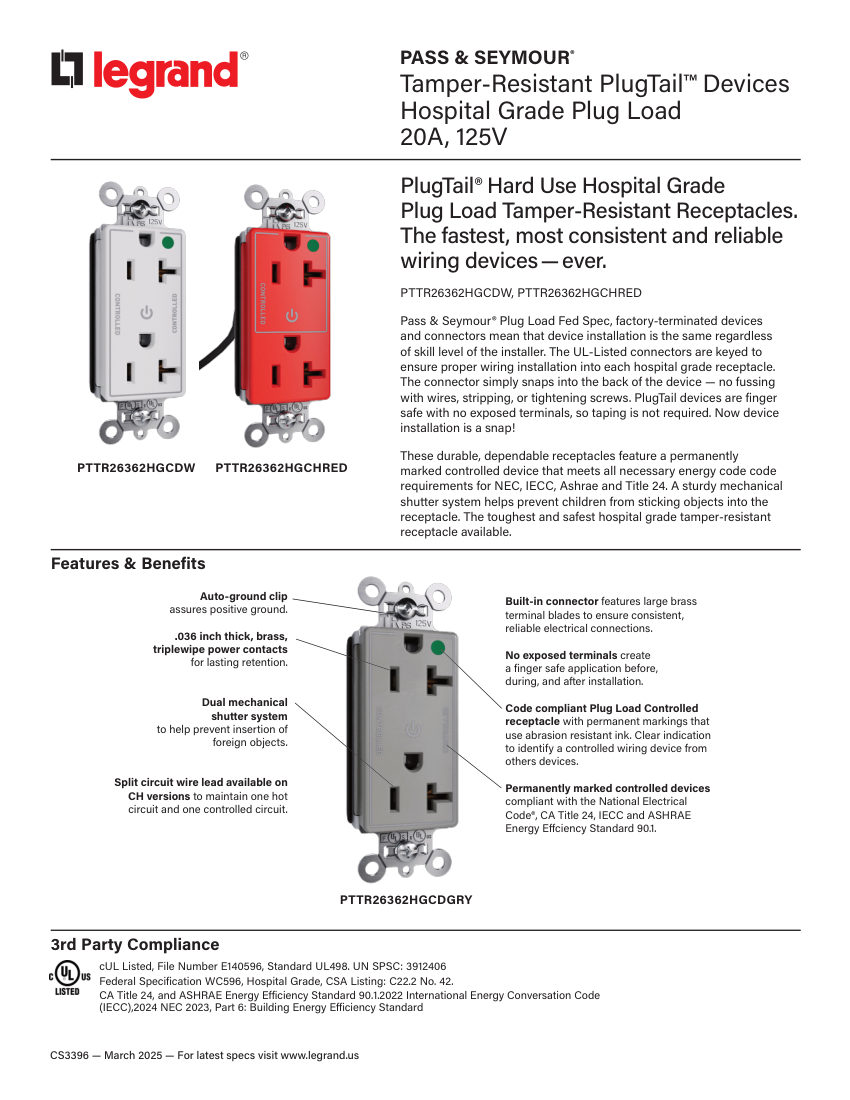

Legrand EWS-PS-CS3396_PlugTail Tamper Resistant Hospital Grade PlugL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
EWS-PS-CS3396_PlugTail Tamper Resistant Hospital Grade PlugL
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWS-PS-CS3396_PlugTail Tamper Resistant Hospital Grade PlugL
DescriptionLegrand Hospital Grade Tamper-Resistant Receptacle (Electrical Receptacles). Model PTTR26362HGCDW, PTTR26362HGCHRED. 20A, 125V Hospital Grade; Tamper-Resistant with dual mechanical shutter; Plug Load Controlled with permanent markings; Dielectric voltage withstands 2000V minimum. material: Brass contacts, UL94 V2 flammability
Connection size#12 AWG THHN copper conductor
End connectionPlugTail Connector
FinishWhite, Red, Gray
MountingStandard device box
Dimensions3.281" x 2.750" x 1.5".
