DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

LegrandEWS WM CS AL7450Raceway 032421EWS-WM-CS-AL7450Raceway-032421

Legrand Aluminum Raceway (Wiremold Isoduct). Model AL7450. Three-channel, dual-cover design; Wall thickness 0.078" [1.99mm]; Anodized finish thickness 0.004" [0.10mm]; Prewired and cut to specified job site lengths. material: 6063 T6 Aluminum Alloy

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWS-WM-CS-AL7450Raceway-032421.pdfData sheet

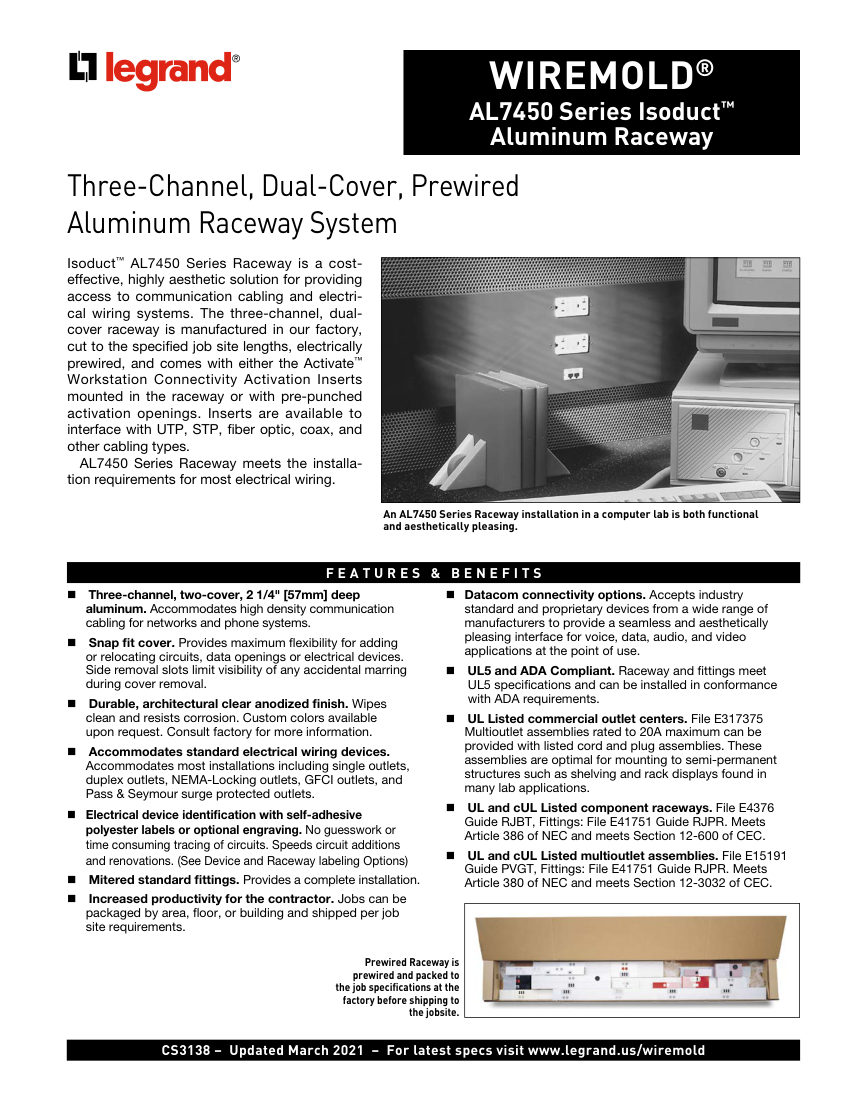

Legrand EWS-WM-CS-AL7450Raceway-032421 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
EWS-WM-CS-AL7450Raceway-032421
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWS-WM-CS-AL7450Raceway-032421
DescriptionLegrand Aluminum Raceway (Wiremold Isoduct). Model AL7450. Three-channel, dual-cover design; Wall thickness 0.078" [1.99mm]; Anodized finish thickness 0.004" [0.10mm]; Prewired and cut to specified job site lengths. material: 6063 T6 Aluminum Alloy
FinishArchitectural clear anodized
MountingSnap fit cover
Dimensions2 1/4" [57mm] deep, 7 3/8" [187mm] wide
ComplianceUL5, ADA, NEC Article 386, CEC Section 12-600.
