DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

LegrandEWS WM CS Evolution6inPokeThruCutSheet 3080 1125EWS-WM-CS-Evolution6inPokeThruCutSheet-3080-1125

Legrand Poke-Thru Device (Wiremold Evolution Series). Model 3080-1125. Three compartments for power, communications, and A/V; Auto-close egress doors for cable management; Pre-pour sleeve for cast-in-place installation; UL Fire rated for up to 2-hour rated floors. material: Die-cast aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWS-WM-CS-Evolution6inPokeThruCutSheet-3080-1125.pdfData sheet

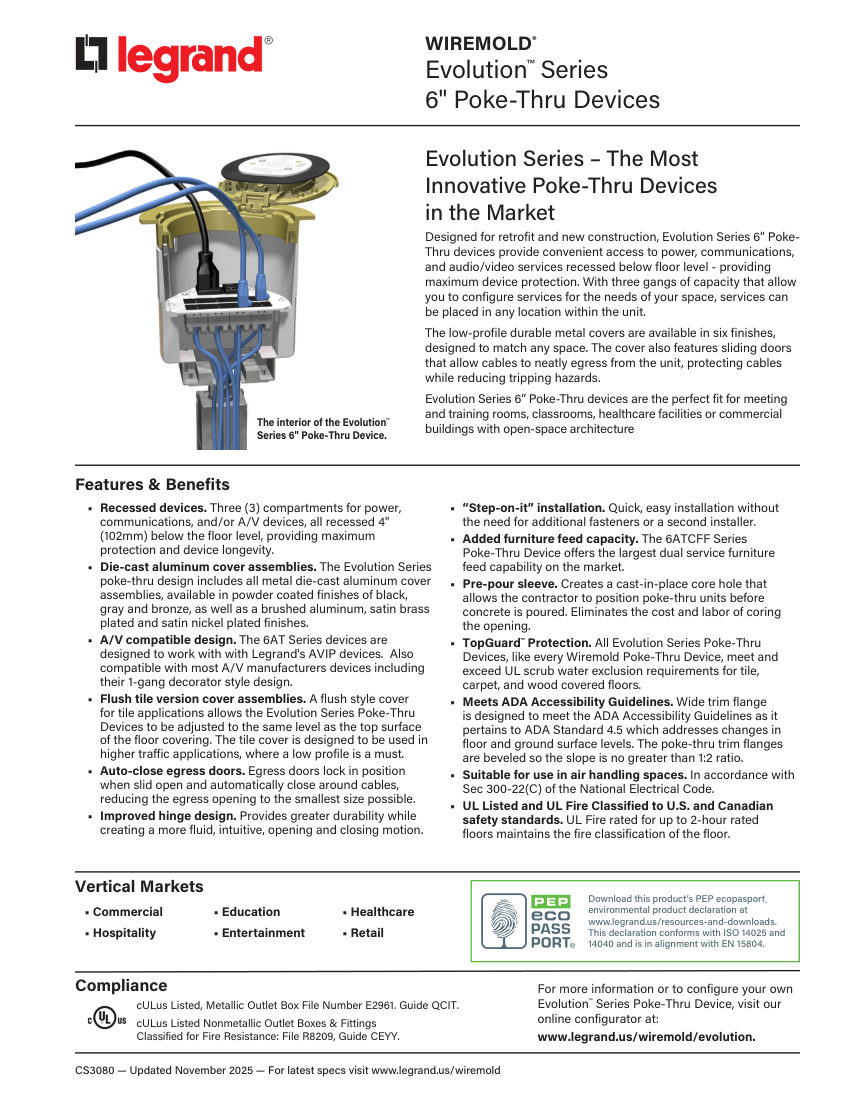

Legrand EWS-WM-CS-Evolution6inPokeThruCutSheet-3080-1125 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
EWS-WM-CS-Evolution6inPokeThruCutSheet-3080-1125
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWS-WM-CS-Evolution6inPokeThruCutSheet-3080-1125
DescriptionLegrand Poke-Thru Device (Wiremold Evolution Series). Model 3080-1125. Three compartments for power, communications, and A/V; Auto-close egress doors for cable management; Pre-pour sleeve for cast-in-place installation; UL Fire rated for up to 2-hour rated floors. material: Die-cast aluminum
Connection size6"
FinishBlack, Gray, Bronze, Brushed Aluminum, Satin Brass, Satin Nickel
MountingRecessed 4" (102mm) below floor level
Dimensions6" diameter
CompliancecULus Listed, ADA Accessibility Guidelines, NEC Sec 300-22(C).
