DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

LegrandEWS WM CS RFBARectangularFloorBox+BAACutSheet 3122EWS-WM-CS-RFBARectangularFloorBox+BAACutSheet-3122

Legrand Recessed Floor Box (Wiremold RFBA Series). Model RFBA Series (RFBA2R, RFBA4R, RFBA6R, RFBA10R). Available in 2, 4, 6, and 10-gang configurations; Depth options of 2.5" (shallow) and 3.0" (standard); Features FloorPort activation covers with TopGuard protection; Includes numerous conduit knockouts for flexible installation. material: Steel (Epoxy coated)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWS-WM-CS-RFBARectangularFloorBox-BAACutSheet-3122.pdfData sheet

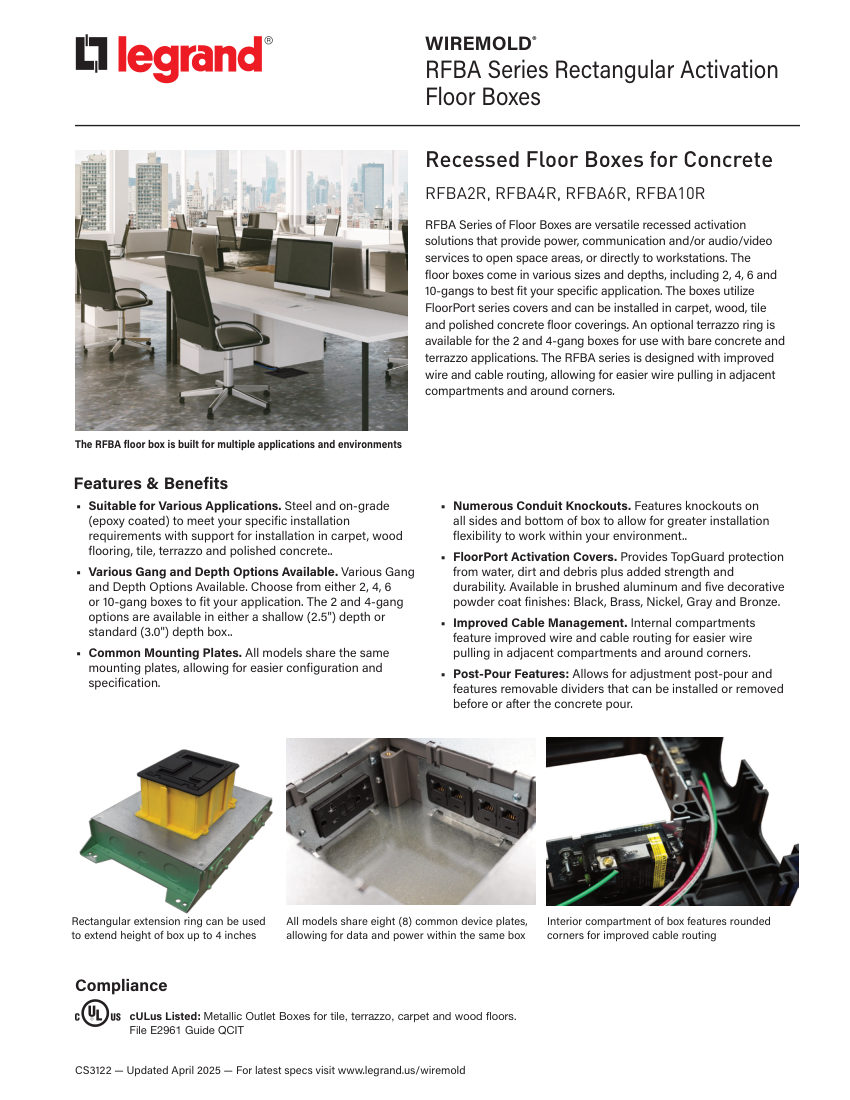

Legrand EWS-WM-CS-RFBARectangularFloorBox+BAACutSheet-3122 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
EWS-WM-CS-RFBARectangularFloorBox+BAACutSheet-3122
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWS-WM-CS-RFBARectangularFloorBox+BAACutSheet-3122
DescriptionLegrand Recessed Floor Box (Wiremold RFBA Series). Model RFBA Series (RFBA2R, RFBA4R, RFBA6R, RFBA10R). Available in 2, 4, 6, and 10-gang configurations; Depth options of 2.5" (shallow) and 3.0" (standard); Features FloorPort activation covers with TopGuard protection; Includes numerous conduit knockouts for flexible installation. material: Steel (Epoxy coated)
Connection size¾” – 2" conduit
End connectionConduit knockouts on all sides and bottom
FinishBrushed aluminum, Black, Brass, Nickel, Gray, Bronze
MountingRecessed in concrete, carpet, wood, tile, terrazzo
Dimensions2, 4, 6,
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
