LegrandHeavy Duty Momentary Toggle Switch Ivory

Legrand Momentary Toggle Switch (Toggle Switch). Model 1250-I. Single-Pole, Double-Throw configuration; 15A, 120/277VAC rating; Tested to 3 Amps, 24Vdc rating; Oversize silver alloy contacts. material: Nylon

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFHeavy-Duty-Momentary-Toggle-Switch-Ivory.pdfData sheet

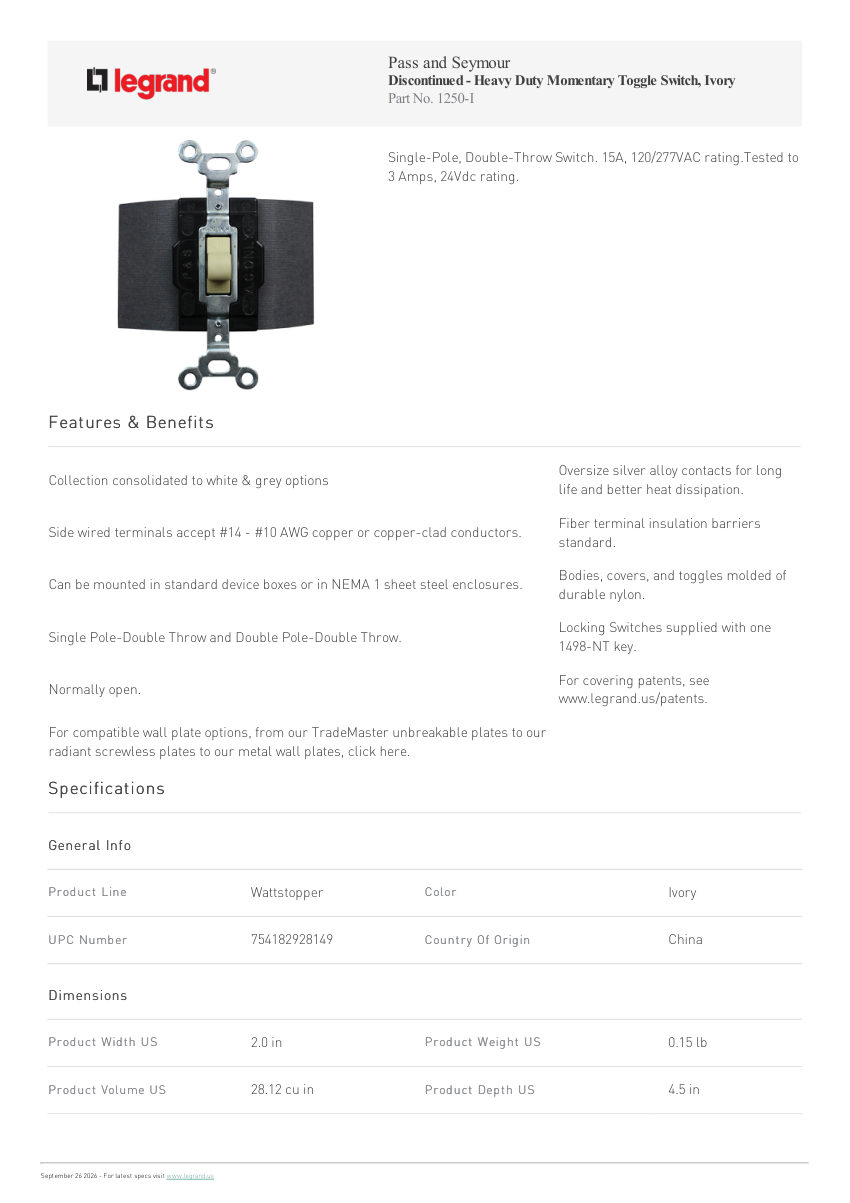

Legrand Heavy Duty Momentary Toggle Switch Ivory cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
Heavy Duty Momentary Toggle Switch Ivory
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberHeavy Duty Momentary Toggle Switch Ivory
DescriptionLegrand Momentary Toggle Switch (Toggle Switch). Model 1250-I. Single-Pole, Double-Throw configuration; 15A, 120/277VAC rating; Tested to 3 Amps, 24Vdc rating; Oversize silver alloy contacts. material: Nylon
Connection size#14 - #10 AWG
End connectionSide wired terminals
FinishIvory
MountingStandard device boxes or NEMA 1 sheet steel enclosures
Dimensions2.0 in W x 2.5 in H x 4.5 in D.
