DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

LegrandIG8200

Name: Legrand IG8200
Brand: Legrand
SKU: IG8200

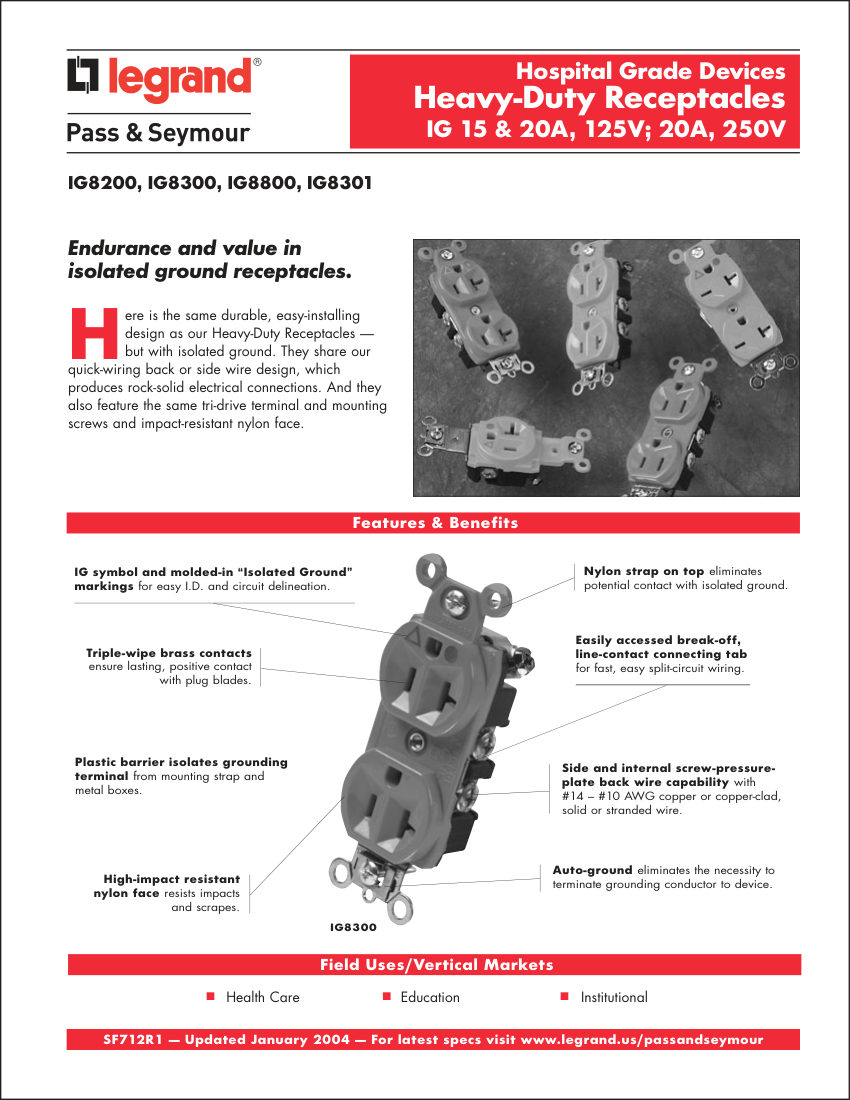

Legrand Heavy-Duty Receptacle (Hospital Grade Devices). Model IG8200, IG8300, IG8800, IG8301. Isolated Ground (IG) receptacles

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	IG8200
Description	Legrand Heavy-Duty Receptacle (Hospital Grade Devices). Model IG8200, IG8300, IG8800, IG8301. Isolated Ground (IG) receptacles
Ratings	15A/125V, 20A/125V, 20A/250V
NEMA Configurations	5-15R, 5-20R, 6-20R; Auto-ground feature eliminates grounding conductor termination. material: Nylon face, PVC back body, Brass contacts
Connection size	#14 - #10 AWG
End connection	Back & Side Wire
Finish	Orange or Red
Mounting	Screw
Dimensions	3.68" x 2.37" x 1.32".

Also cataloged as: IG8200-RED, IG8300, IG8300-RED, IG8800, IG8301, IG-8200, IG-8200-RED, IG-8300, IG-8300-RED, IG-8800, IG-8301
