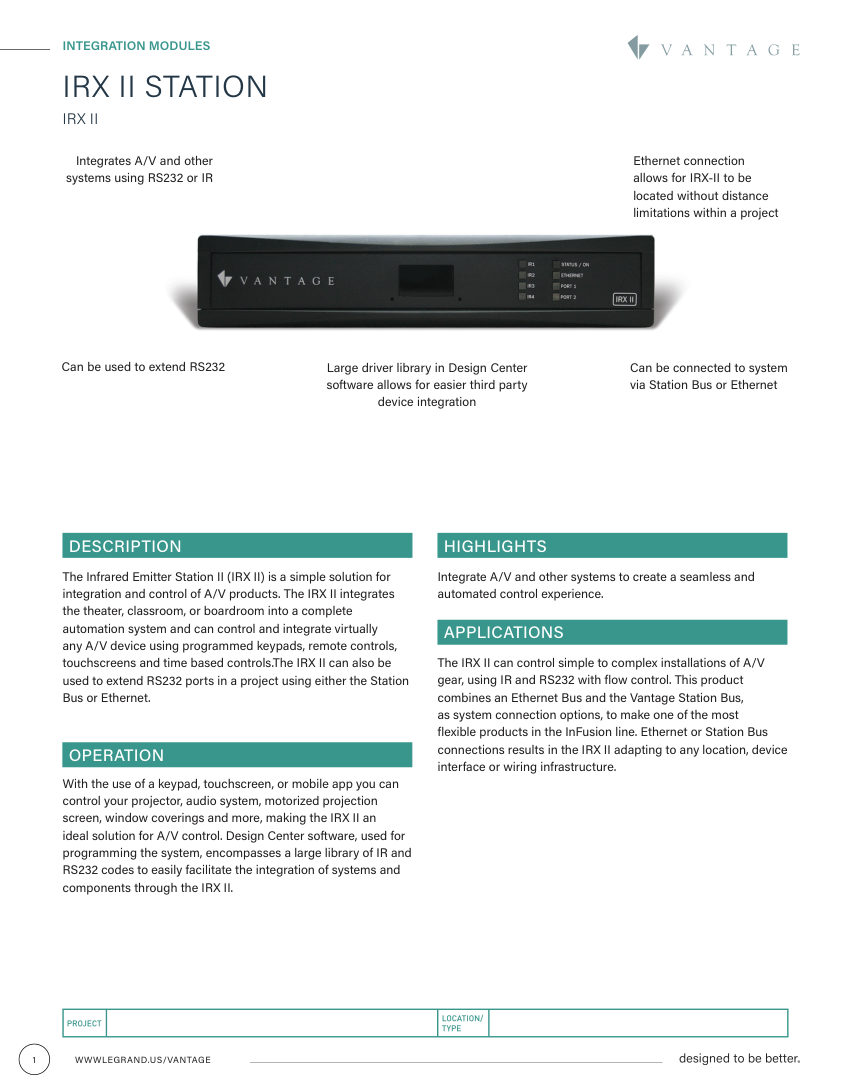

LegrandIRX II_1308270_cutsheet
Legrand Infrared Emitter Station (Integration Modules). Model IRX II. 4 IR channels (up to 8 in piggy-back mode); 2 High-speed RS232 ports; 2 Low-voltage SPST relays (1A max each); 1 Ethernet Bus port (RJ45 TCP/IP). mounting: 35mm DIN Rail
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Legrand
- Catalog no.
- IRX II_1308270_cutsheet
- Product type
- Electrical
- MasterFormat
- 26
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | IRX II_1308270_cutsheet |
|---|---|
| Description | Legrand Infrared Emitter Station (Integration Modules). Model IRX II. 4 IR channels (up to 8 in piggy-back mode); 2 High-speed RS232 ports; 2 Low-voltage SPST relays (1A max each); 1 Ethernet Bus port (RJ45 TCP/IP). mounting: 35mm DIN Rail |
| Dimensions | 1.7" x 8.5" x 6.125" (43mm x 216mm x 156mm) |
| Compliance | UKCA, CE (EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3) |
| Voltage | 120 or 240VAC; 15 Amps, 50/60 Hz; output 12 VDC @ 15 Amps. |
