DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

LegrandL3-0101B2JYX1XXXX

Legrand Fiber System (Fiber Optic Connectivity). Model Infinium Ultra. Single-mode total channel connection loss: 1.2dB; Multimode total channel connection loss: 1.0dB; Single-mode total channel connection return loss: 49dB; Multimode total channel connection return loss: 19dB. connectionSize: 12 or 24 fiber

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFL3-0101B2JYX1XXXX.pdfData sheet

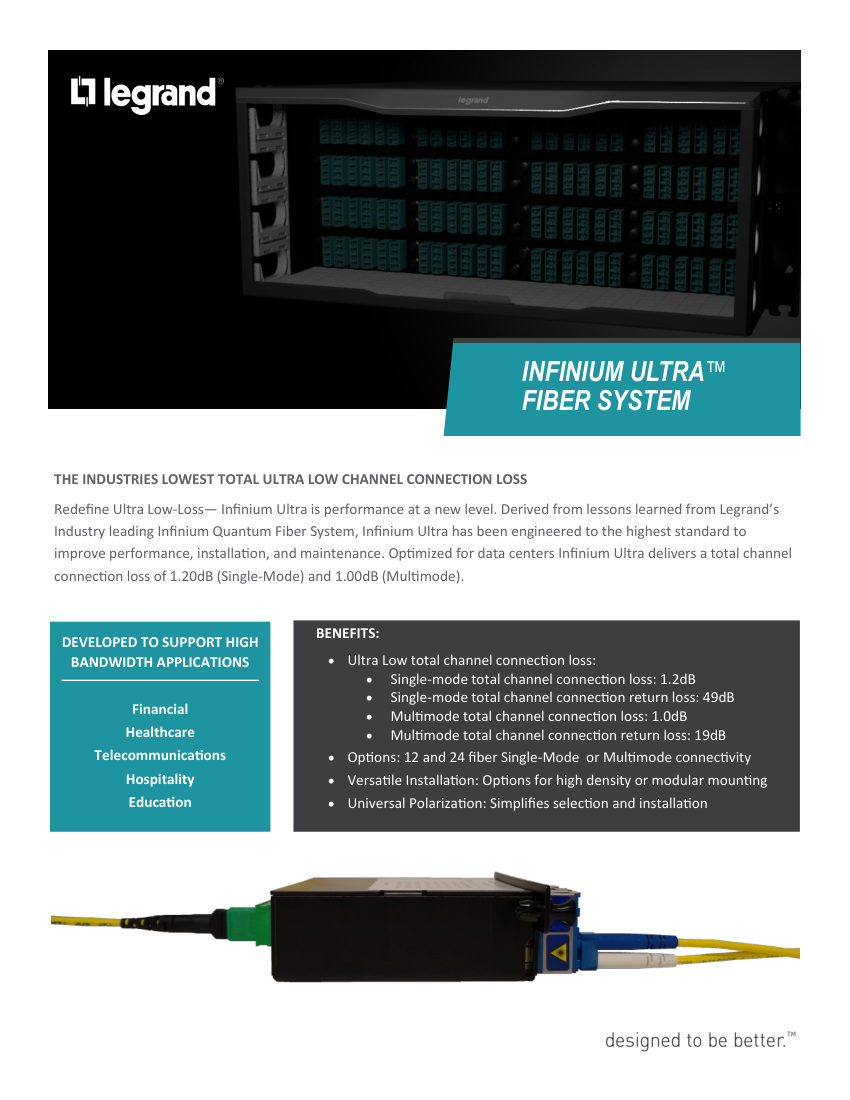

Legrand L3-0101B2JYX1XXXX cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
L3-0101B2JYX1XXXX
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberL3-0101B2JYX1XXXX
DescriptionLegrand Fiber System (Fiber Optic Connectivity). Model Infinium Ultra. Single-mode total channel connection loss: 1.2dB; Multimode total channel connection loss: 1.0dB; Single-mode total channel connection return loss: 49dB; Multimode total channel connection return loss: 19dB. connectionSize: 12 or 24 fiber
End connectionLC, MTP
MountingHigh density or modular
ComplianceTAA.

Also cataloged as: LM4-LC12J-1A2UN, U7171BXXXXJXXXXXXX, LM4-LC24J-2A2UN, L3-0101B2EAX1XXXX, LM4-LC12H, U5555BxxxxEXXXXXXX, LM4-LC24H, LMH-LC12J-1A2UN, LMH-LC12H
