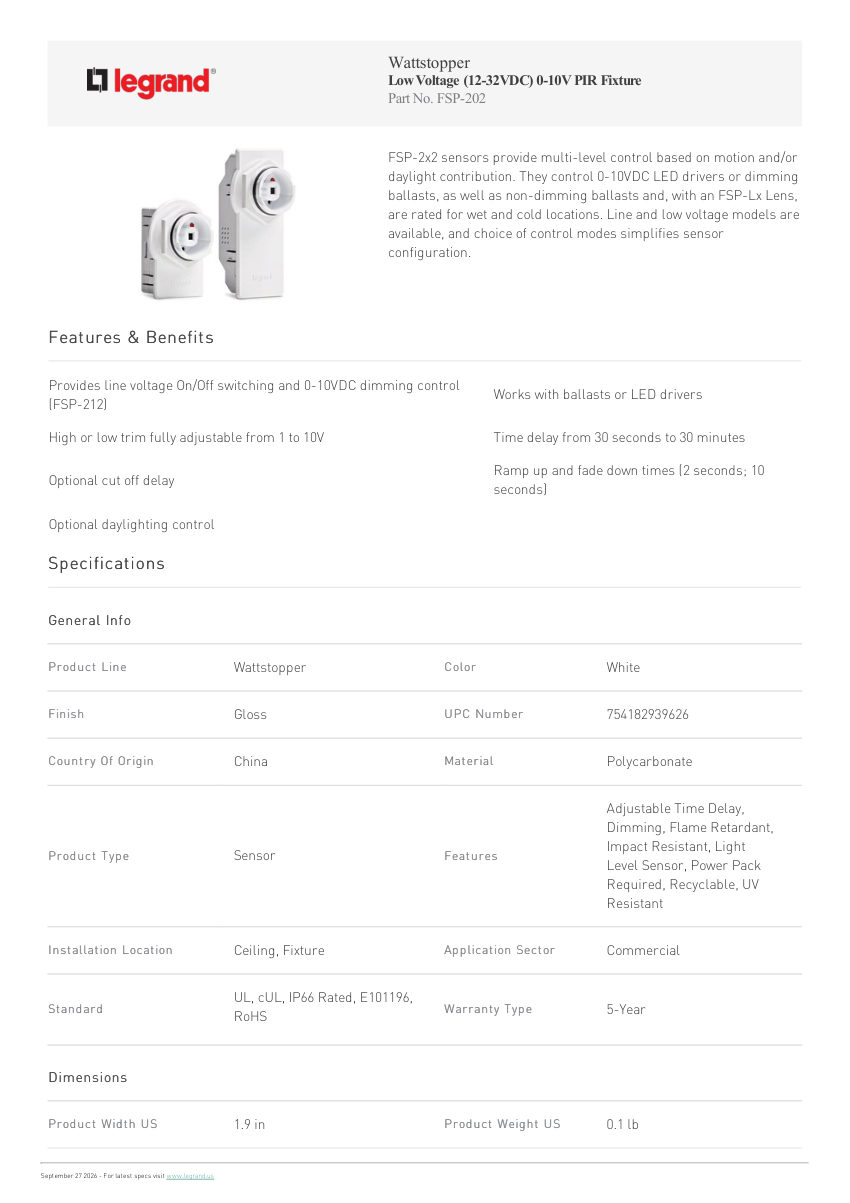

LegrandLow Voltage 12 32Vdc 0 10V Pir Fixture
Legrand PIR Sensor (Wattstopper). Model FSP-202. Controls 0-10VDC LED drivers and dimming ballasts; Time delay adjustable from 30 seconds to 30 minutes; Rated for wet and cold locations (IP66); Operating temperature range -40°F to 158°F. material: Polycarbonate
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Legrand
- Catalog no.
- Low Voltage 12 32Vdc 0 10V Pir Fixture
- Product type
- Electrical
- MasterFormat
- 26
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | Low Voltage 12 32Vdc 0 10V Pir Fixture |
|---|---|
| Description | Legrand PIR Sensor (Wattstopper). Model FSP-202. Controls 0-10VDC LED drivers and dimming ballasts; Time delay adjustable from 30 seconds to 30 minutes; Rated for wet and cold locations (IP66); Operating temperature range -40°F to 158°F. material: Polycarbonate |
| End connection | Wire Terminal |
| Finish | Gloss White |
| Mounting | Fixture Embedded, Snap-in, Threaded Collar |
| Dimensions | 1.9 in W x 2.4 in H x 1.5 in D |
| Compliance | UL, cUL, IP66, E101196, RoHS. |
