LegrandSP ExtraHeavy Dut PSPT5262A

Legrand Extra Heavy-Duty Receptacle (Electrical Receptacles). Model PT5262A, PT5362A. 15 & 20A, 125V Spec Grade; Factory-terminated PlugTail connectors; Finger safe with no exposed terminals; Dielectric voltage withstands 2000V minimum. material: Nylon, Brass, Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPT5262A.pdfData sheet

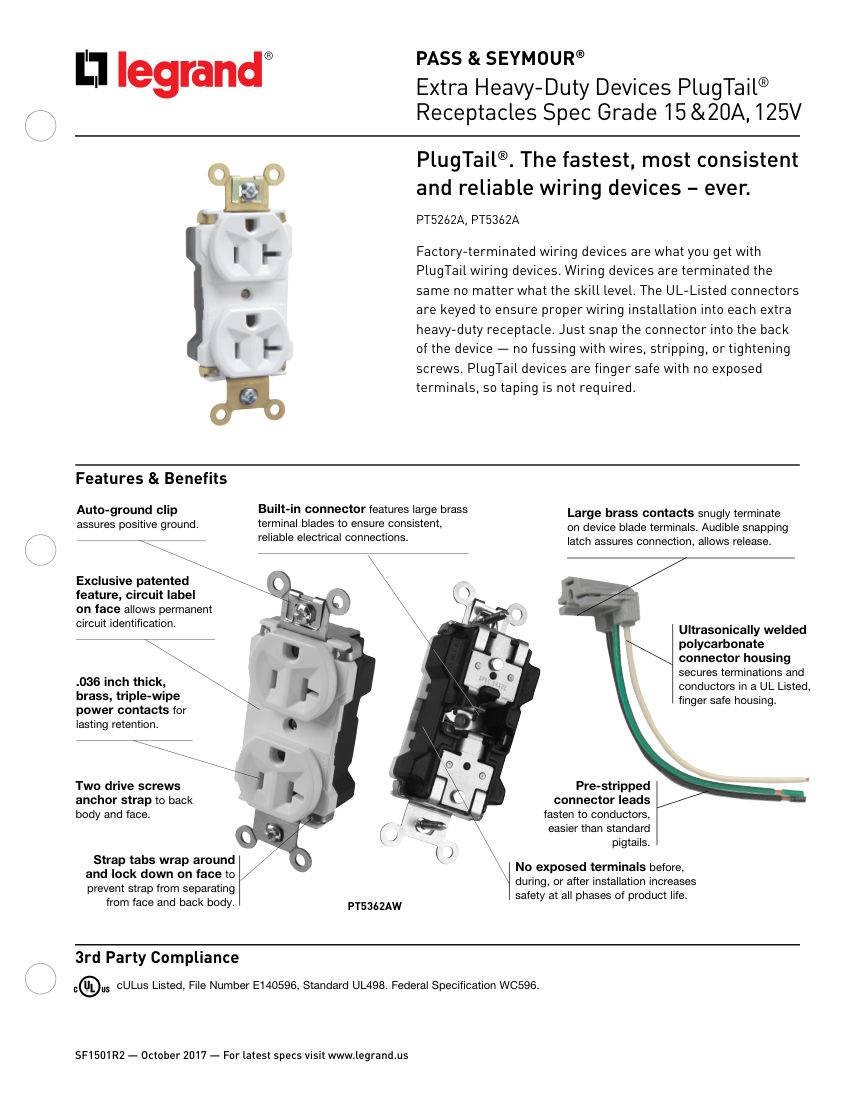

Legrand PT5262A cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
PT5262A
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPT5262A
DescriptionLegrand Extra Heavy-Duty Receptacle (Electrical Receptacles). Model PT5262A, PT5362A. 15 & 20A, 125V Spec Grade; Factory-terminated PlugTail connectors; Finger safe with no exposed terminals; Dielectric voltage withstands 2000V minimum. material: Nylon, Brass, Steel
Connection size#12 AWG
End connectionPlugTail Connector
MountingStrap
Dimensions2.750" x 1.625" x 1.104"
CompliancecULus Listed, UL498, WC596.

Also cataloged as: PT5362A, PT5362AW, PT5262AI, PT5262AGRY, PT5362ABL, PT5362ARED, PT-5262A, PT-5362A
