LegrandPT5262I

Legrand PlugTail Receptacle (Electrical Receptacles). Model PT5262, PT5362. 15 & 20A, 125V rating; Factory-terminated PlugTail connectors; Finger-safe design with no exposed terminals; Dielectric voltage withstands 2000V minimum. material: Nylon face, PVC body, Brass contacts, Zinc-Plated Steel strap

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPT5262I.pdfData sheet

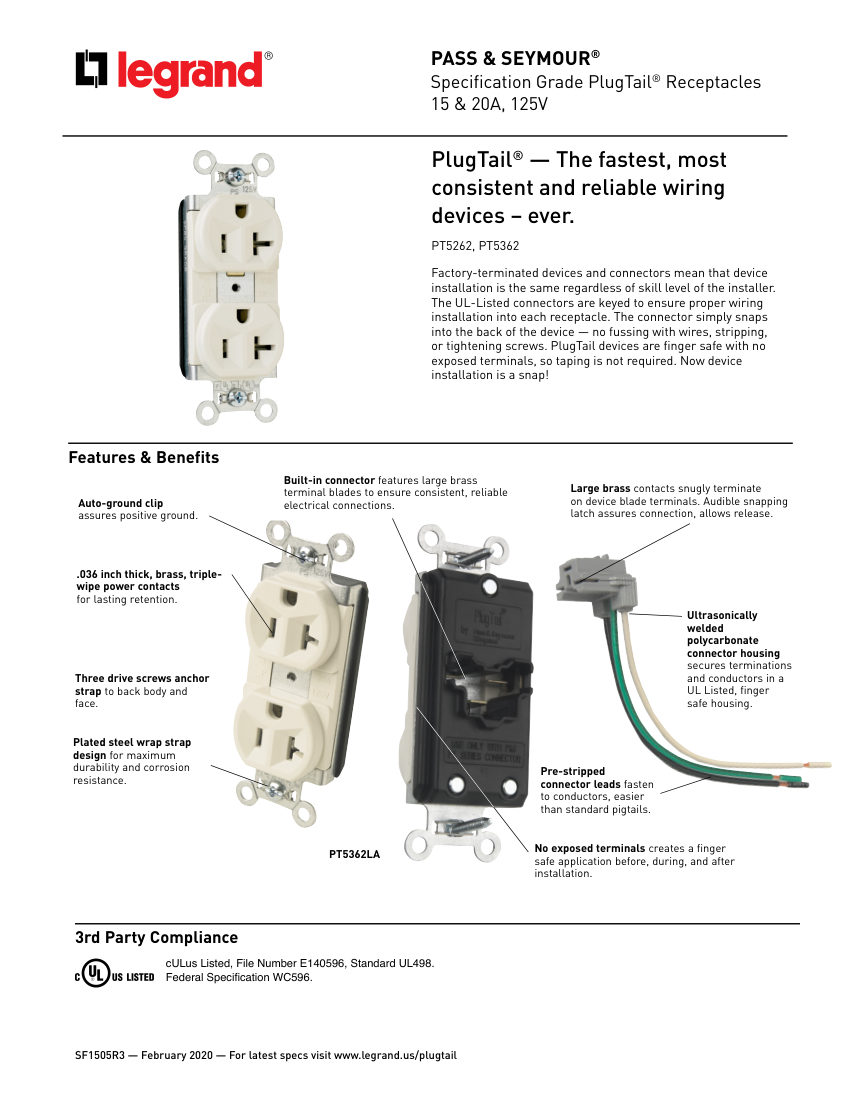

Legrand PT5262I cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
PT5262I
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPT5262I
DescriptionLegrand PlugTail Receptacle (Electrical Receptacles). Model PT5262, PT5362. 15 & 20A, 125V rating; Factory-terminated PlugTail connectors; Finger-safe design with no exposed terminals; Dielectric voltage withstands 2000V minimum. material: Nylon face, PVC body, Brass contacts, Zinc-Plated Steel strap
Connection size#12 AWG
End connectionPlugTail Connector
MountingBack box with wrap strap
Dimensions2.750" x 1.5" x 0.625"
CompliancecULus Listed, File Number E140596, Standard UL498, Federal Specification WC596.

Also cataloged as: PT5262W, PT5262, PT5262GRY, PT5262BL, PT5262RED, PT5262LA, PT5262BK, PT5362I, PT5362W, PT5362, PT5362GRY
