LegrandPTIG8

Legrand Hospital Grade Isolated Ground Surge Protective Receptacle (Surge Protective Receptacles). Model PTIG8200ISP. 15A 125VAC, 2 Pole, 3 Wire Grounding; Suppressed Voltage 500V; Energy Rating 340 Joules (L-N/L-G), 680 Joules (N-G); Max Surge Capability 24kA. material: Nylon face/body, Polycarbonate housing, Brass contacts

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPTIG8.pdfData sheet

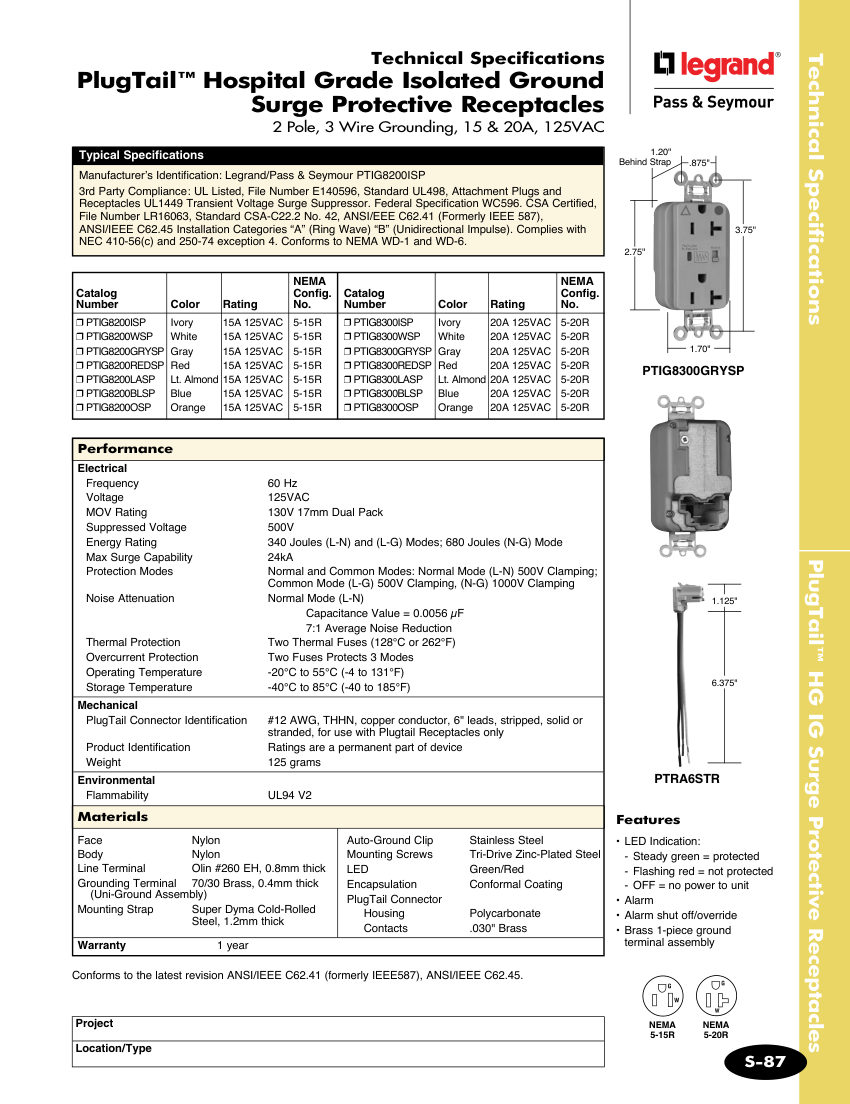

Legrand PTIG8 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
PTIG8
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPTIG8
DescriptionLegrand Hospital Grade Isolated Ground Surge Protective Receptacle (Surge Protective Receptacles). Model PTIG8200ISP. 15A 125VAC, 2 Pole, 3 Wire Grounding; Suppressed Voltage 500V; Energy Rating 340 Joules (L-N/L-G), 680 Joules (N-G); Max Surge Capability 24kA. material: Nylon face/body, Polycarbonate housing, Brass contacts
Connection size#12 AWG THHN copper conductor
End connectionPlugTail Connector
FinishIvory
MountingStrap mount
Dimensions3.75" x 2.75" x 1.20" (behind strap).

Also cataloged as: PTIG8200ISP, PTIG8200WSP, PTIG8200GRYSP, PTIG8200REDSP, PTIG8200LASP, PTIG8200BLSP, PTIG8200OSP, PTIG8300ISP, PTIG8300WSP, PTIG8300GRYSP, PTIG8300REDSP
