LegrandPTIG8200-I

Legrand Isolated Ground Receptacle (Hospital Grade Devices). Model PTIG8200, PTIG8300. 15A and 20A ratings at 125V; Isolated Ground configuration; NEMA 5-15R and 5-20R; Finger safe with no exposed terminals. material: Nylon face, PVC back body, Brass contacts, Zinc-plated steel strap

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPTIG8200-I.pdfData sheet

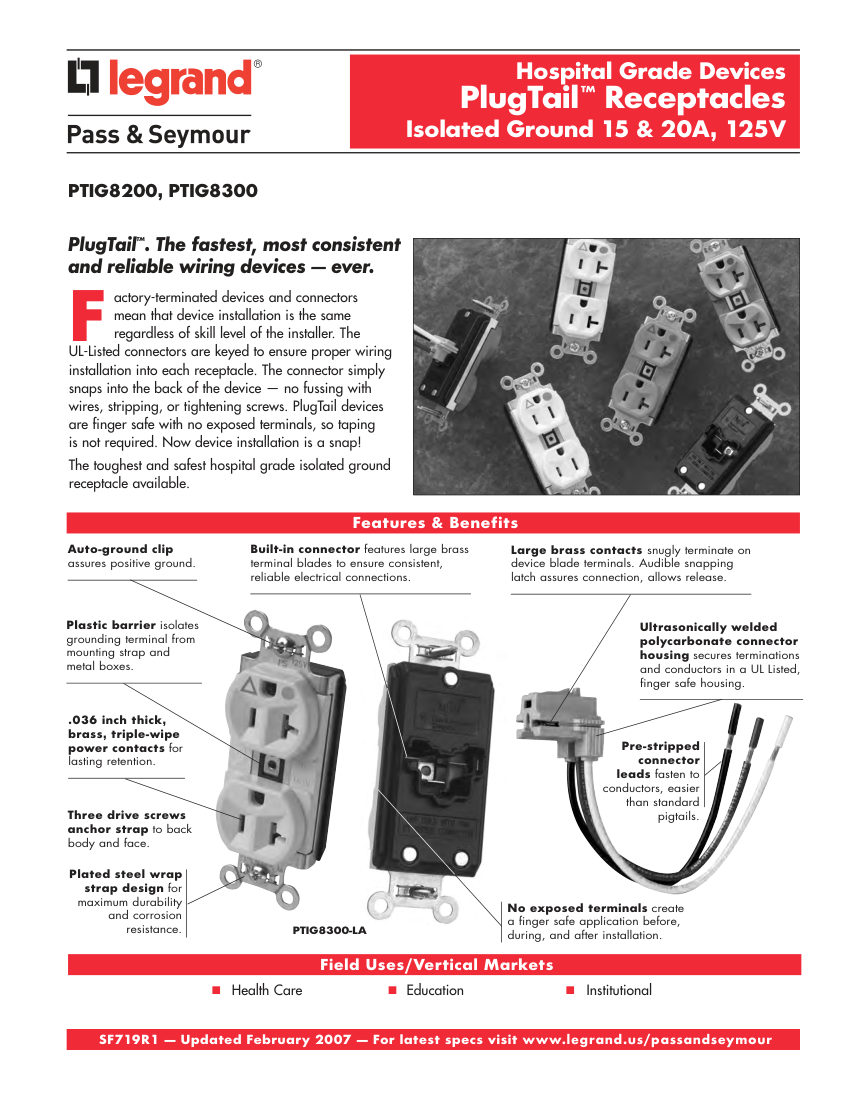

Legrand PTIG8200-I cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
PTIG8200-I
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPTIG8200-I
DescriptionLegrand Isolated Ground Receptacle (Hospital Grade Devices). Model PTIG8200, PTIG8300. 15A and 20A ratings at 125V; Isolated Ground configuration; NEMA 5-15R and 5-20R; Finger safe with no exposed terminals. material: Nylon face, PVC back body, Brass contacts, Zinc-plated steel strap
Connection size#12 AWG
End connectionPlugTail Connector (Right Angle)
FinishIvory, Orange, Red
MountingPlated steel wrap strap
Dimensions2.750" x 1.104" x 0.625".

Also cataloged as: PTIG8200, PTIG8200-RED, PTIG8300-I, PTIG8300, PTIG-8200-I, PTIG-8200, PTIG-8200-RED, PTIG-8300-I, PTIG-8300
