LegrandCS radiant Wave SwitchRSWV153

Legrand touchless wave switch (radiant). Model RSWV153, RSWV203. Adjustable sensor distance from 1" to 6"; Rated for 1/2 HP (15A) or 3/4 HP (20A) motor loads; Indoor use only with max ambient temperature of 35°C (95°F); Replaces standard single pole or 3-way switches. material: Impact-resistant thermoplastic

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFRSWV153.pdfData sheet

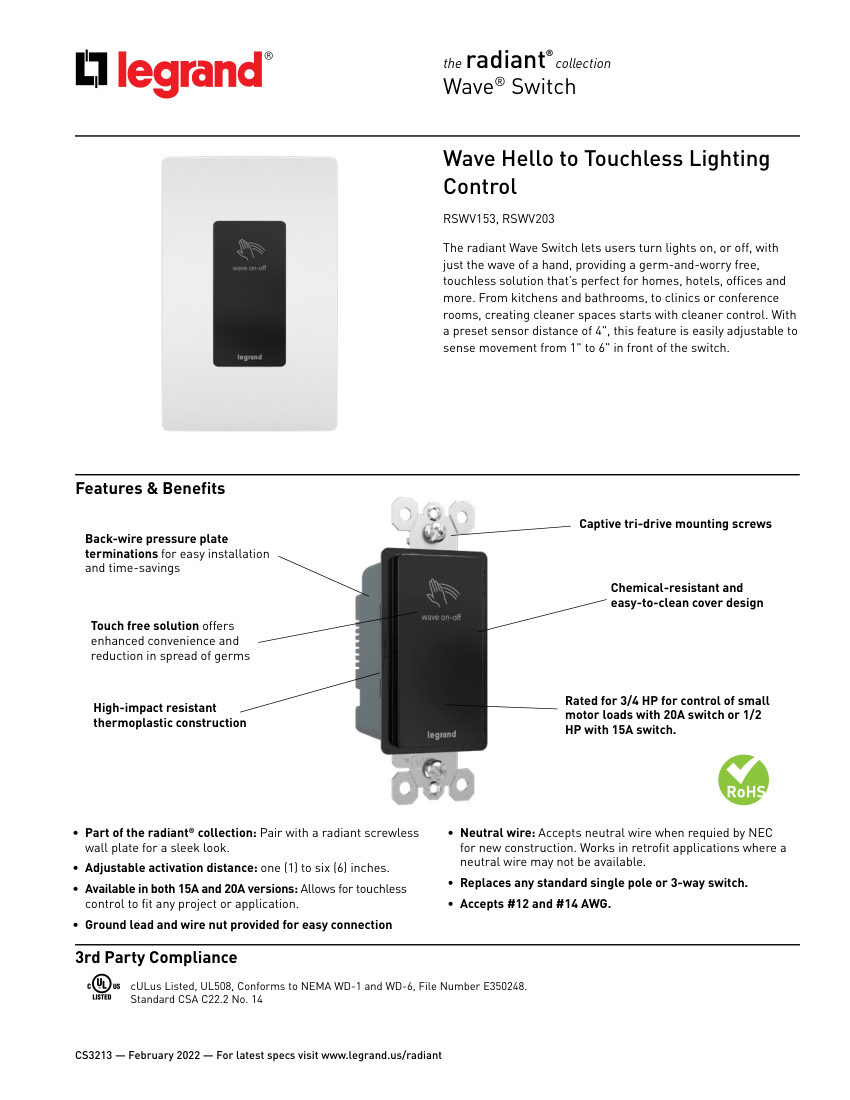

Legrand RSWV153 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
RSWV153
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberRSWV153
DescriptionLegrand touchless wave switch (radiant). Model RSWV153, RSWV203. Adjustable sensor distance from 1" to 6"; Rated for 1/2 HP (15A) or 3/4 HP (20A) motor loads; Indoor use only with max ambient temperature of 35°C (95°F); Replaces standard single pole or 3-way switches. material: Impact-resistant thermoplastic
Connection size#14-12 AWG
End connectionBack-wire pressure plate
FinishBlack
MountingCaptive tri-drive mounting screws
Dimensions4.19" x 1.62" x 1.29".

Also cataloged as: RSWV203, RSWV-153, RSWV-203
